Product Details
＋

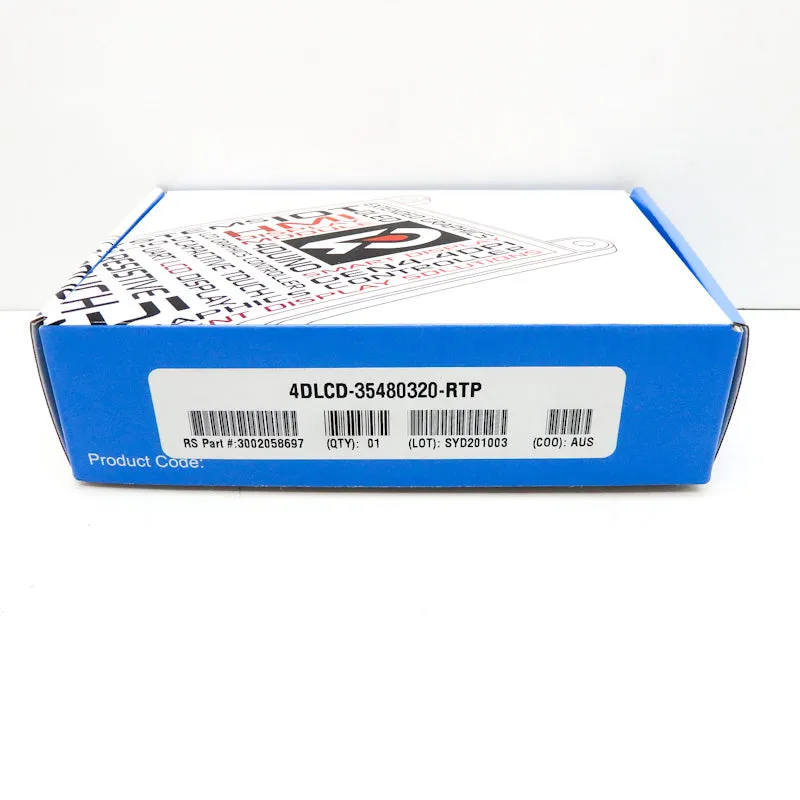

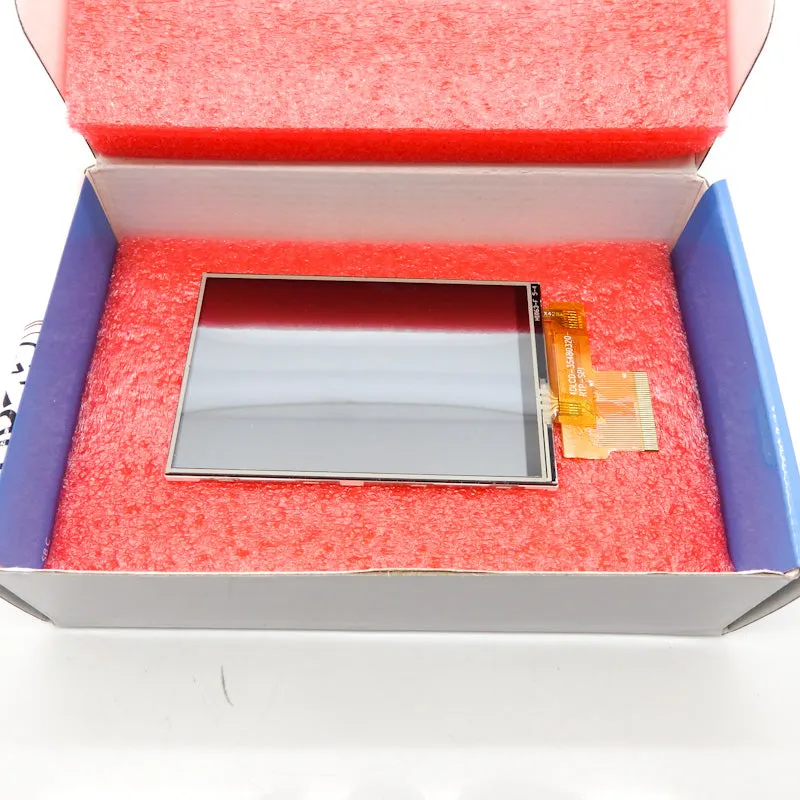

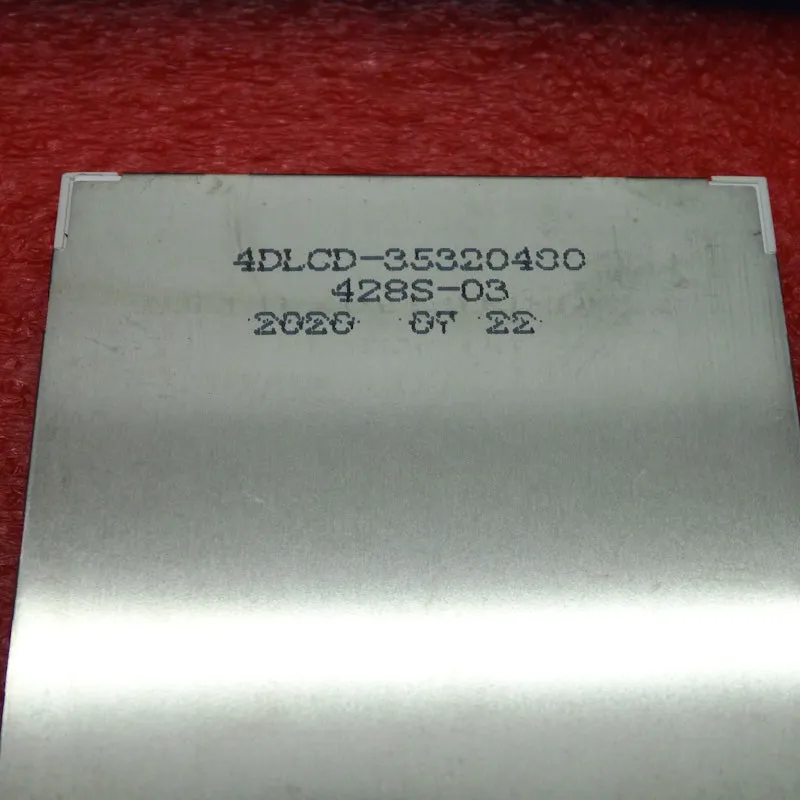

This is a 4D Systems 3.5" 320x480 Pixel Touch Screen TFT LCD Display 4DLCD-35480320-RTP. It comes exactly as pictured and does not include any additional parts or accessories.
Specifications:
- Diagonal Display Size 3.5in
- Interface Type SPI
- Resolution 320 x 480pixels
- Touch Screen Yes
- Viewing Area Dimensions 48.96 x 73.44mm
- Supply Voltage 2.8 V
- Touch Screen Type Resistive
- Backlight Type LED
- Display Mode Transmissive
- Dimensions 54.50 x 83.00 x 3.35mm
- Display Matrix Technology TFT
- Minimum Operating Temperature -20°C
- Maximum Operating Temperature 70°C
- Brightness 270cd/m²
- Power Supply Included No
- Current Rating 120mA
- Number of Colors 262K
- Standards Met CE, RoHS Compliant
- Response Time 30ms
- Operating Temperature Range -20 â 70°C
- Viewing Area Width 48.96mm
- Voltage Rating 2.8V
- Viewing Area Height 73.44mm
- Contrast Ratio 1000
- Series 4DLCD
- Display Type LCD TFT
