SPECIFICATIONS

Overview
Height of Cabinet	24.5" (62 cm)
Height to Hinge Cap	24.63" (63 cm)
Width	18.5" (47 cm)
Depth	17.75" (45 cm)
Depth with door at 90°	34.5" (88 cm)
Capacity	1.8 cu.ft. (51 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	50.0 lbs. (23 kg)
Shipping Weight	53.0 lbs. (24 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	18.63" (47 cm)
Interior Width	13.38" (34 cm)
Interior Depth	13.0" (33 cm)
Shelf Type	Wire
Shelf Qty	2
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	0.8 oz.
Level Legs	2
Compressor Step Height	8.0" (20 cm)
Compressor Step Width	13.38" (34 cm)
Compressor Step Depth	5.75" (15 cm)

AVAILABLE UPGRADES

Handle

CP Full-Length Copper Pipe Handle

Factory-installed full-length handle made from pure copper for antimicrobial protection

TBC Copper Towel Bar Handle

Factory-installed handle made from pure copper for antimicrobial protection

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac	DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management
HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing Door reversal to left hand swing	ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar.
SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option	Extra key Extra keys available for purchase
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Lock

AC Keypad

Keypad door lock powered by appliance power cord for keyless security

KEYPAD

Battery-powered keypad door lock installed for keyless security

This product can be further customized to specific user requirements. For more information, contact our specialists at 718-893-3900 ext. 220 or

California residents:

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to .
Note: Nickel is a component of stainless steel.

FEATURES

Commercially approved
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Compact dimensions
Sized for easy use on top of counters

Manual defrost
Static cooling system for improved temperature stability

-20ºC capable
Low temperature capability ideal for certain sensitive items

Factory installed lock
Keyed lock for a secure interior

NIST calibrated thermometer
Thermometer provides continuous display of the current and high/low temperature to the nearest tenth of a degree, with a readout switchable from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe
Thermometer probe is encased in a glycol-filled bottle to better simulate the temperature of stored contents instead of freezer air temperature

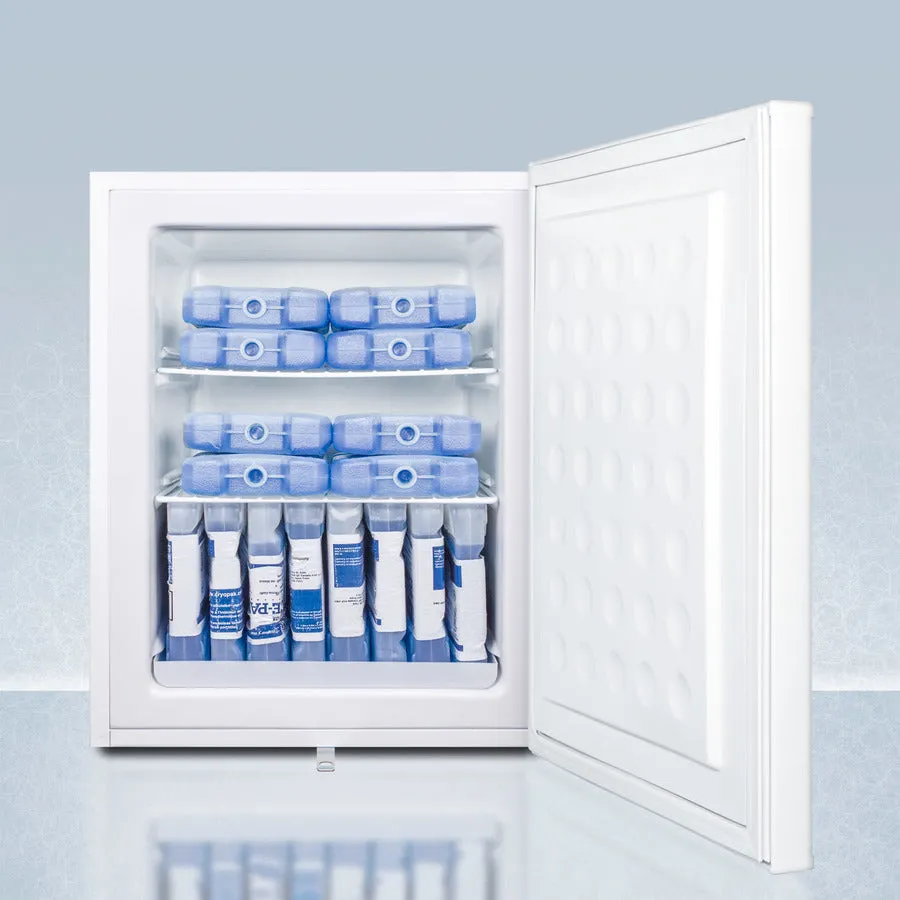

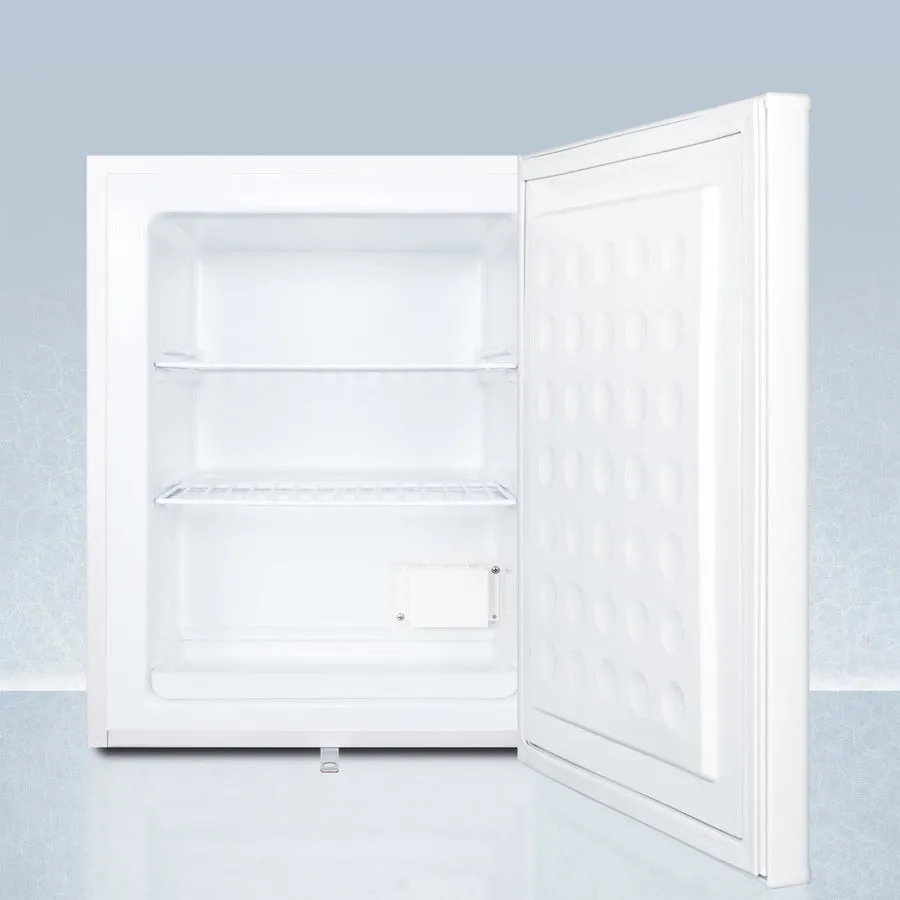

Removable shelves
Wire shelves can be removed to accommodate different sizes or for easy cleanup

Adjustable thermostat
Dial thermostat located inside the unit

Flat door liner
Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

One piece interior liner
Easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Magnetic door gasket
Quality door gaskets ensure a tight seal for energy savings and improved performance

Foamed-in-place cabinet
Designed to ensure a sufficiently insulated interior

Fully finished cabinet
Allows the unit to be used freestanding

Approved for use in the USA and Canada
ETL and ETL-C listed for North American sales

Factory reversible door
Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

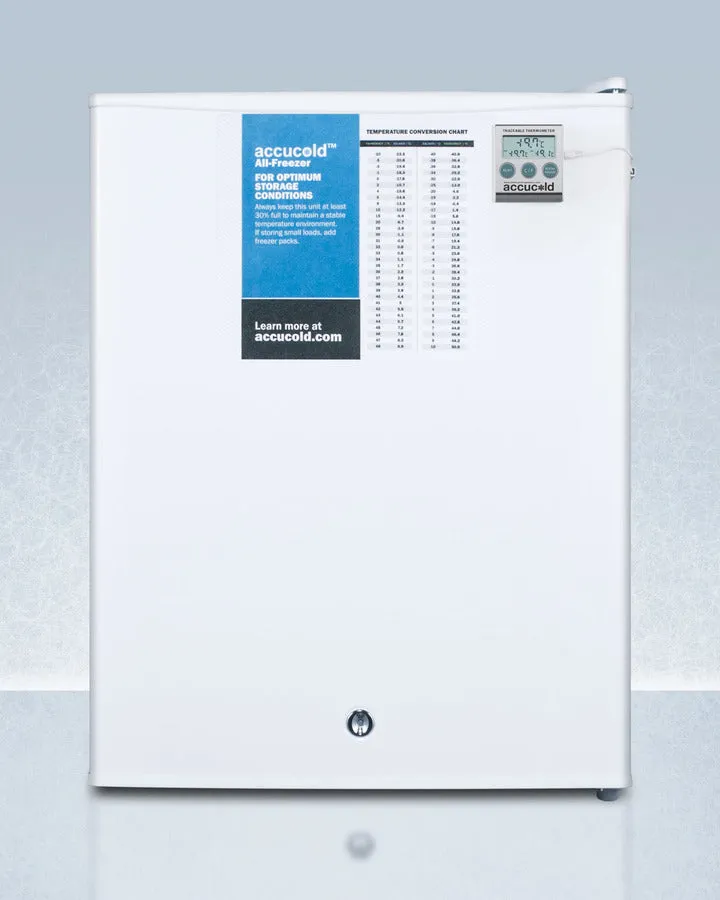

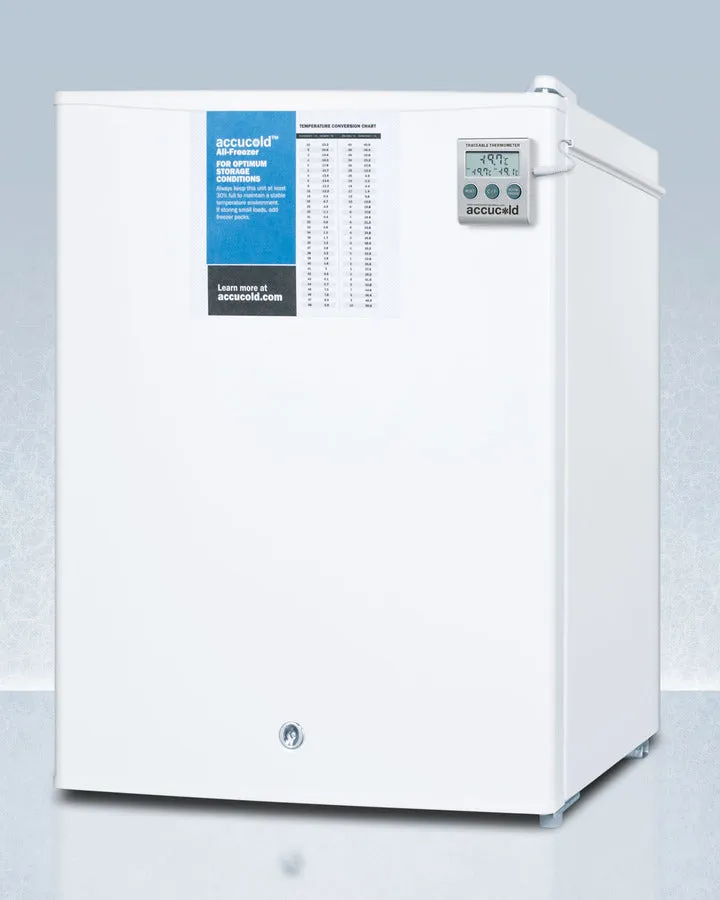

The FS30L7PLUS2 is a compact 1.8 cu.ft. all-freezer that is ETL-S listed to NSF-7 commercial standards. It comes in a white exterior. The door includes a factory-installed lock and a thermometer calibrated to NIST standards in our ISO/IEC 17025:2005 laboratory. It displays the current, minimum, and maximum temperature to the nearest tenth degree viewable in Celsius or Fahrenheit. The buffered temperature probe is stored in a glycol-filled bottle to ensure the temperature reading best reflects the temperature of other stored freezer contents.  This freezer is manual defrost and operates at an average temperature of -20ºC.With reliable construction and a convenient size, the FS30L7PLUS2 is the ideal freezer for storing select items in institutional facilities. This unit can also be ordered with more advanced medical features, including a digital thermostat, self-closing door, temperature alarm, and more.Accucold's PLUS2 series refrigerators are intended for a wide variety of basic storage only. Storage of high-value vaccines, life science materials, medical, or clinical biologicals require a product with design features including, but not limited to tighter temperature controls, monitoring, and/or back-up.
