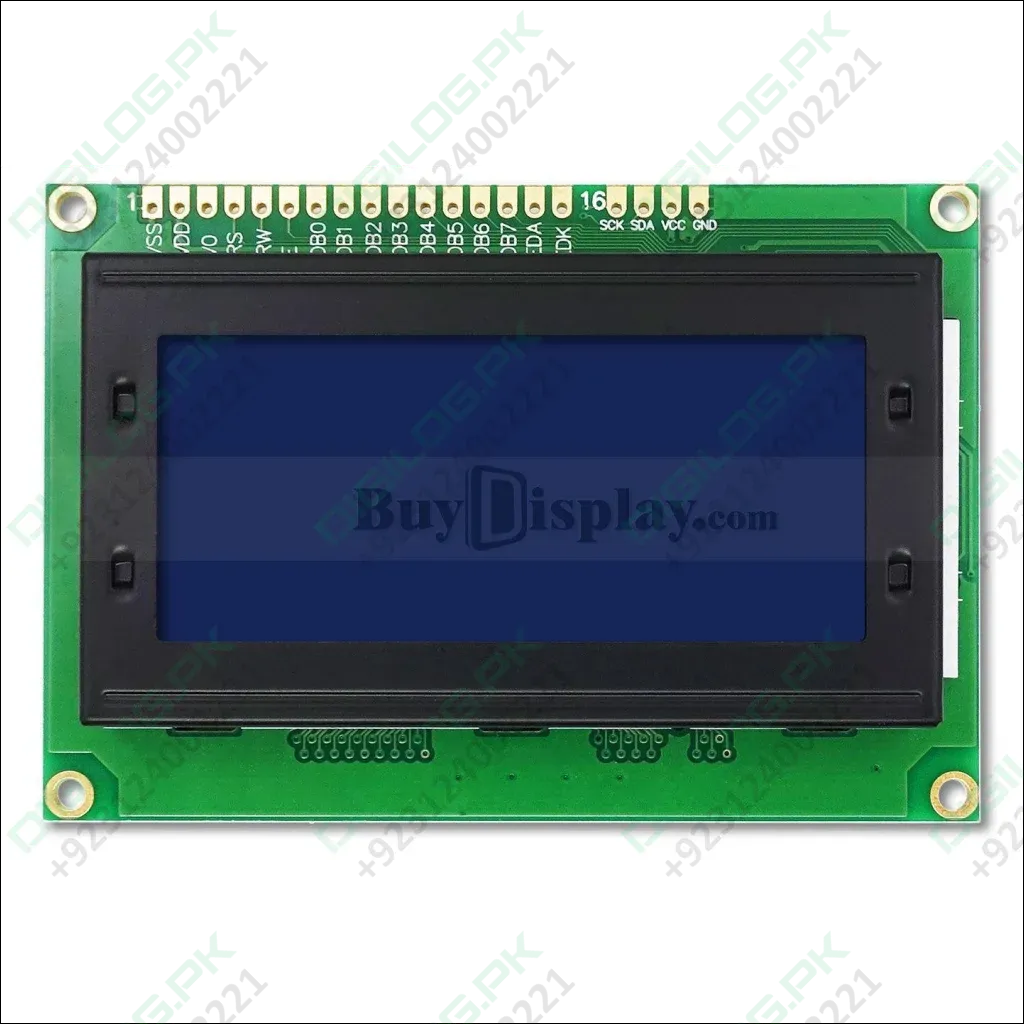

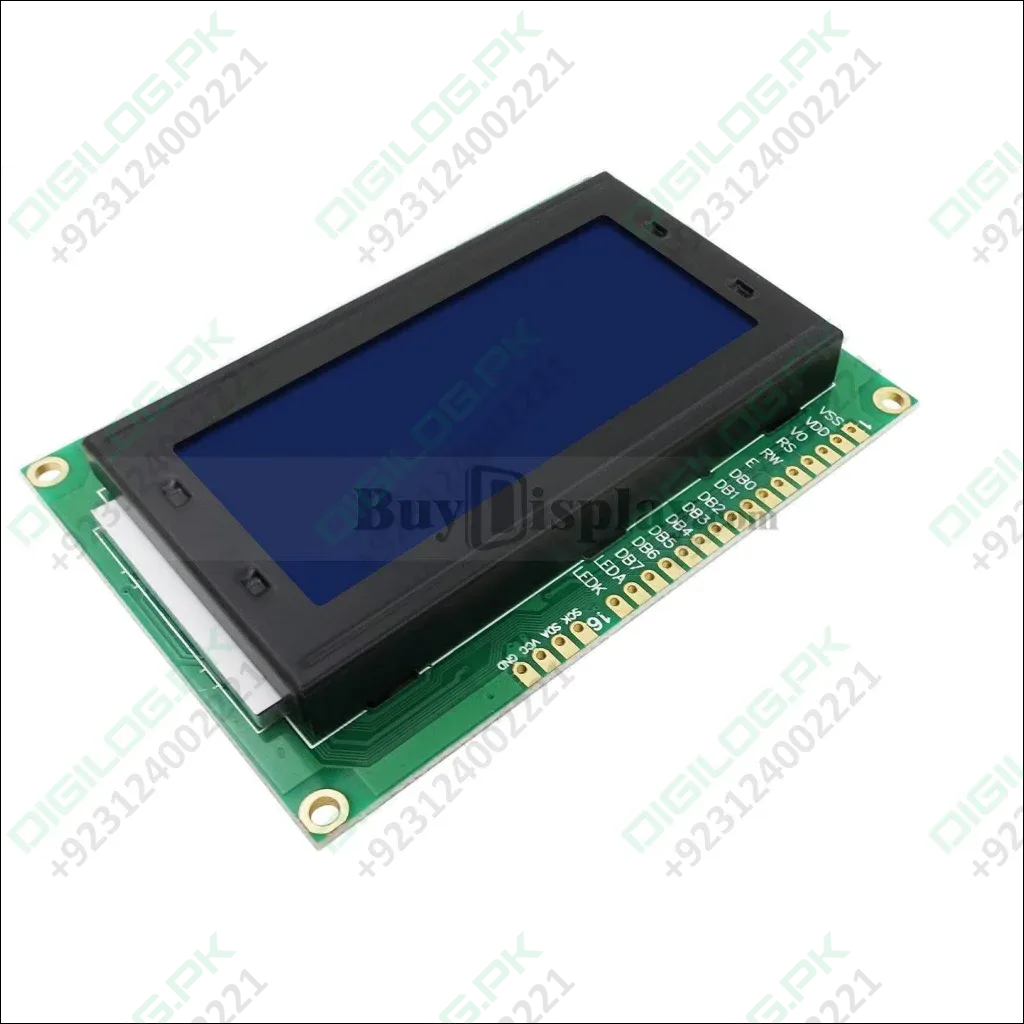

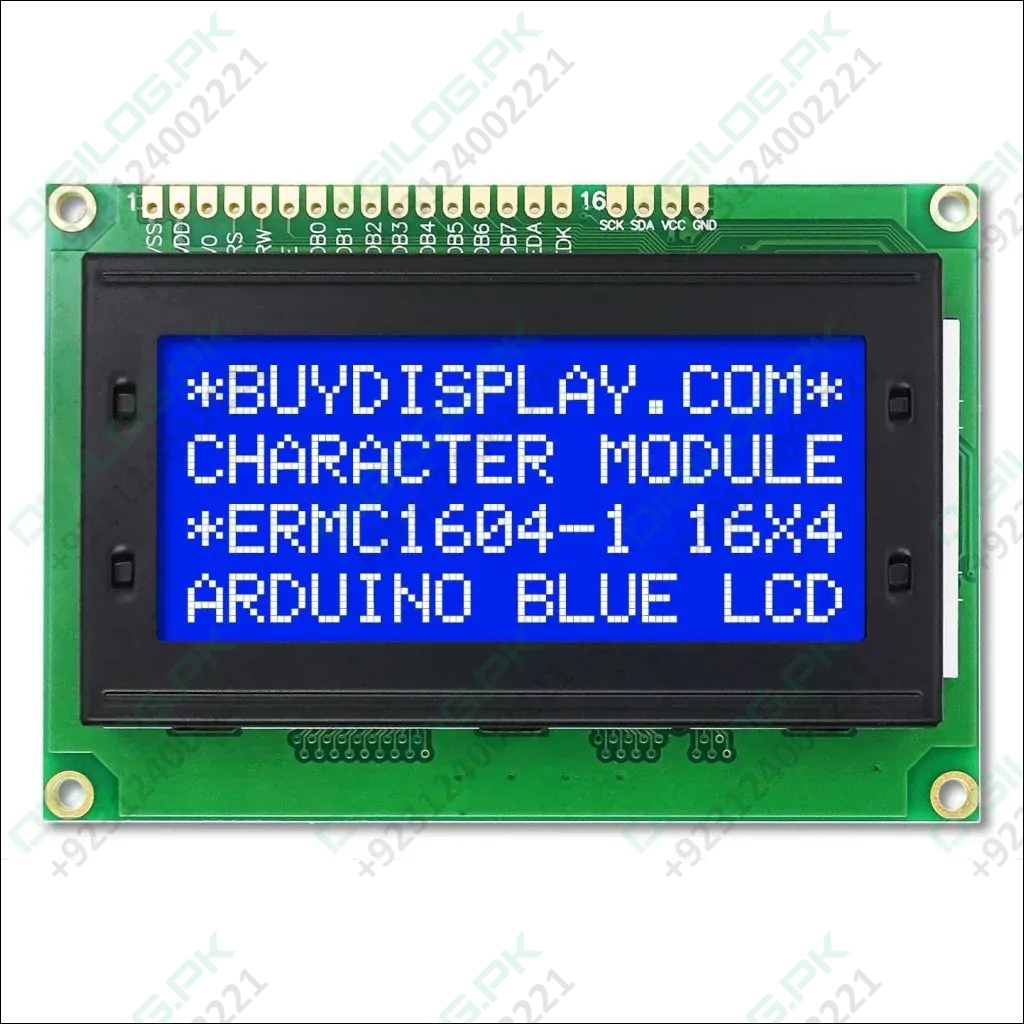

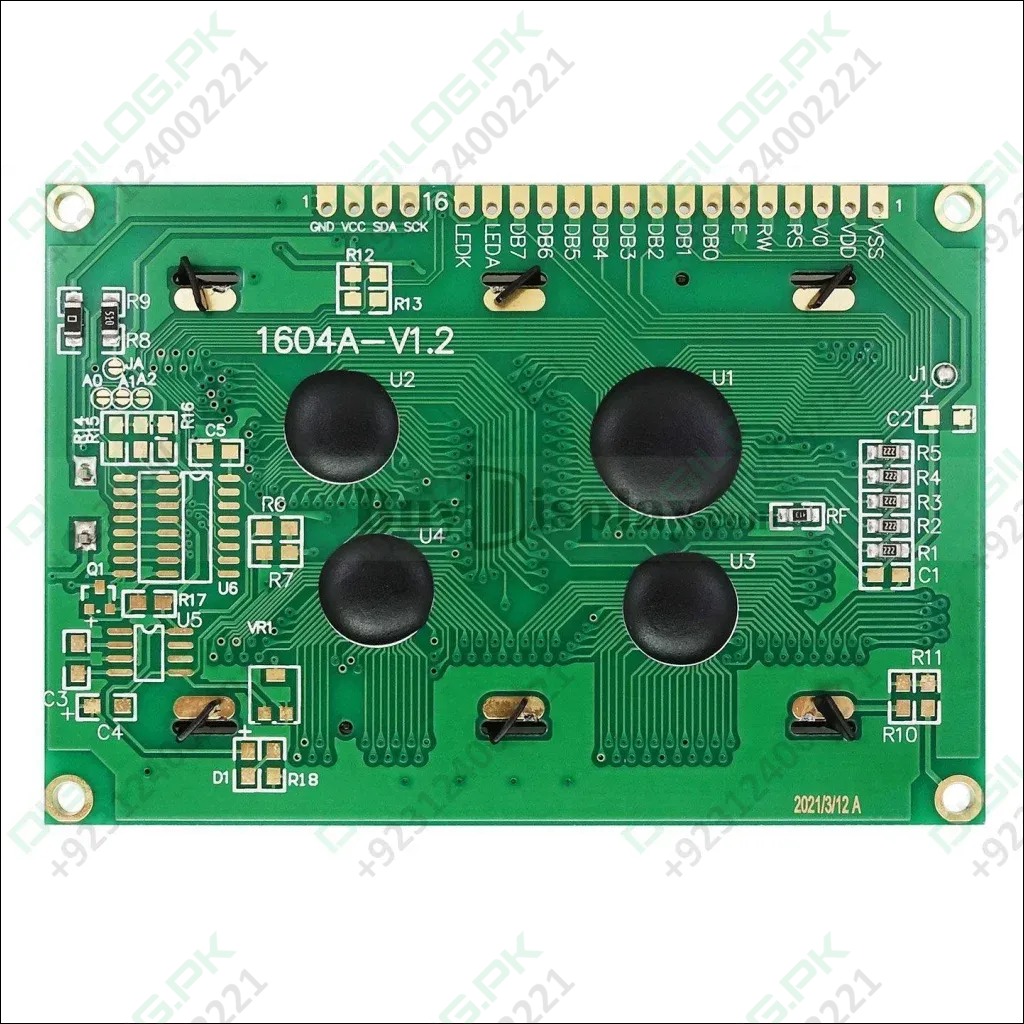

Blue Color 1604A LCD 16X4 LCD Display is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.Optional 3.3v or 5v power supply and optional pin header connection.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Datasheet for Character LCD Module,Controller IC,Adapter Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
| 1.0 | English | Dec-09-2020 |
664K |
||
| 1.1 | English | Jul-09-2002 | 813K | ||
| 1.0 | English | Jul-17-2019 | 203K |
Tutorial - Arduino
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
| 1.0 | English | Jul-23-2019 |
45K |
||
| 1.0 | English | Aug-12-2019 | 97K |
Package includes:
- 1x LCD Display
