Product Details
＋
Triplett's CamView HD Pro can also provide 12VDC (not to exceed 1A) to power the analog camera. The Tester also allows you to capture video (snapshots and video recording), play back video, generate video test patterns for monitor checking, and monitor the data flow between the analog camera and the DVR system. You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight. The CamView HD Pro supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0.
DESCRIPTION
Triplett's CamView HD Pro can also provide 12VDC (not to exceed 1A) to power the analog camera. The Tester also allows you to capture video (snapshots and video recording), play back video, generate video test patterns for monitor checking, and monitor the data flow between the analog camera and the DVR system. You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight. The CamView HD Pro supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0. This Tester is powerful, portable, and designed with the technician in mind. It will help you perform installation and maintenance jobs quickly and efficiently.
CATEGORY:
Features
- Analog testing for up to 8MP cameras; Automatically recognizes the type of encoding: SD Analog, AHD 2.0, HD-CVI 3.0, HD-TVI 3.0
- RS485 port for testing the Pan-Tilt-Zoom (PTZ) and supports more than 30 PTZ protocols
- 12VDC/1A output
- Analog Video Generator and HD Video Generator (up to 1080P 30fps); Screen shot, video recording, and frame by frame or streaming playback
Product Overview
CamView HD Pro: 8065
Ruggedized High Definition Analog Camera Tester

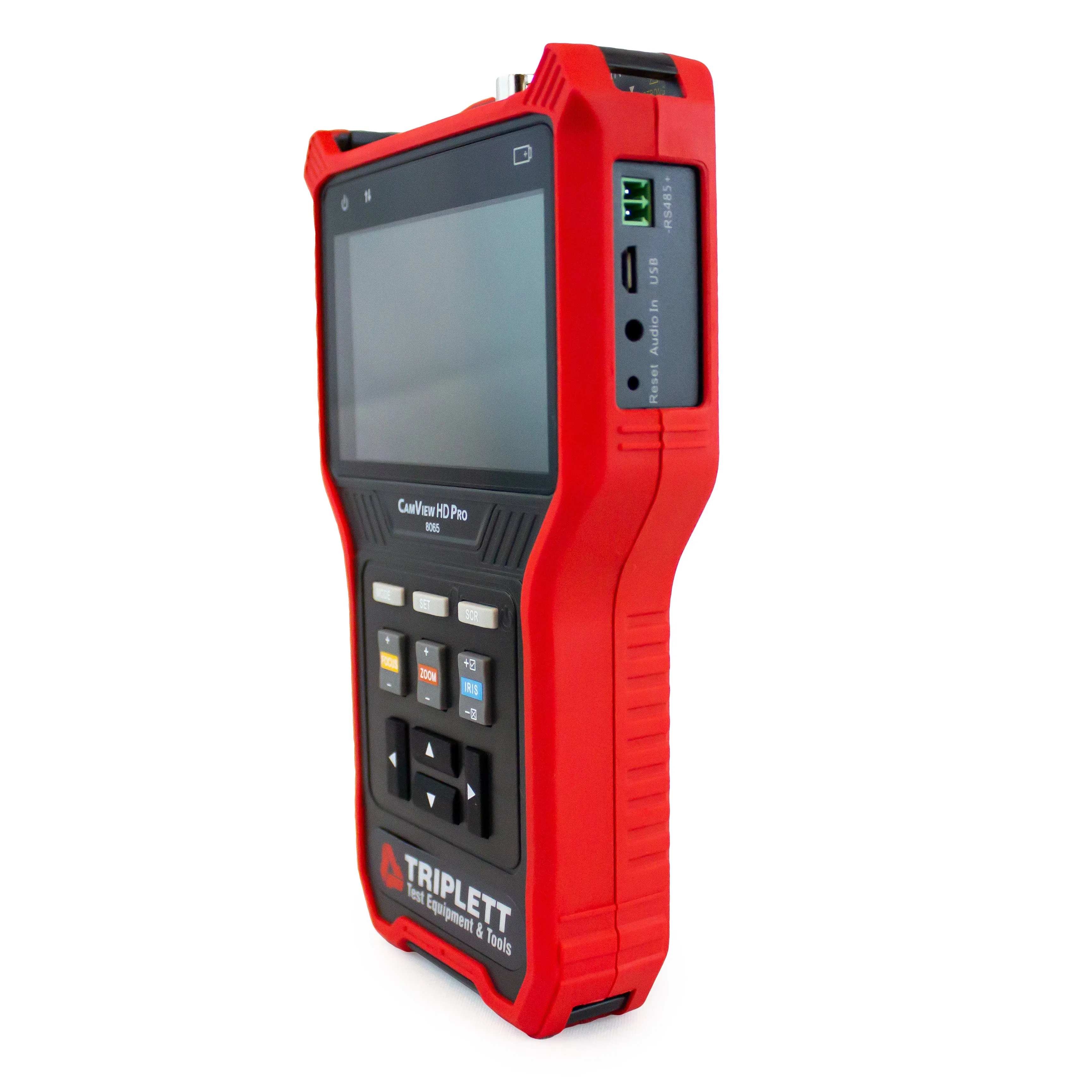

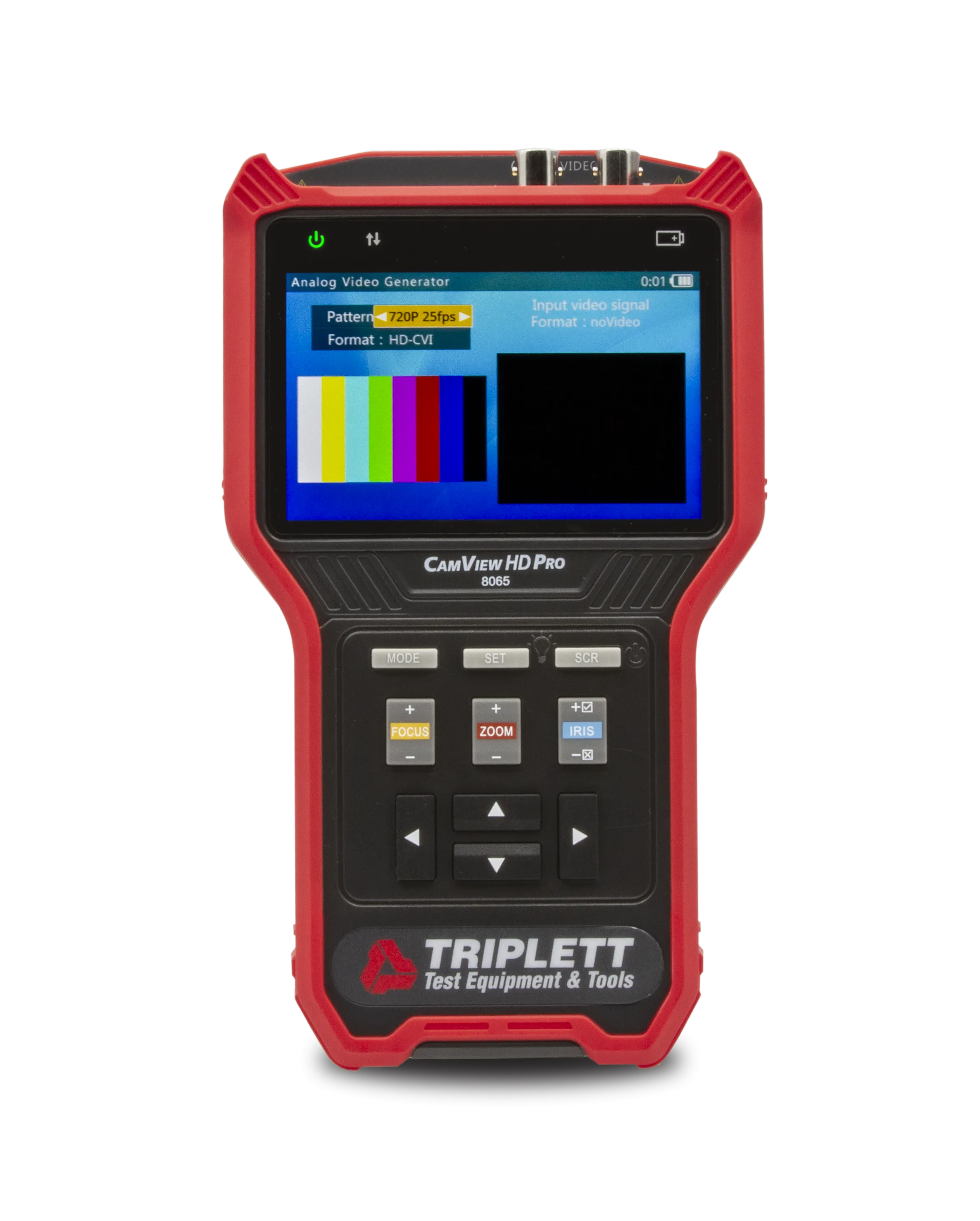

The CamView HD Pro is designed to facilitate the installation and maintenance of surveillance video equipment. It can be used with Standard Definition analog NTSC/PAL, HD-TVI, HD-CVI, and AHD camera systems. The Tester has an RS485 port for testing the Pan-Tilt-Zoom (PTZ), and supports more than 30 PTZ protocols. It can also provide 12VDC (not to exceed 1A) to power the analog camera. The Tester also allows you to capture video (snapshots and video recording), play back video, generate video test patterns for monitor checking, and monitor the data flow between the analog camera and the DVR system. You can also use it to check microphone/audio on the camera, or take advantage of the built-in flashlight.
Tests AHD 2.0, CVI 3.0, & TVI 3.0 Cameras!
The CamView HD Pro supports HD cameras up to HD-TVI 3.0, HD-CVI 3.0, and AHD 2.0. This Tester is powerful, portable, and designed with the technician in mind. It will help you perform installation and maintenance jobs quickly and efficiently.
Features
- Analog Testing for up to 8MP cameras, including NTSC/PAL, AHD 2.0, CVI 3.0, and TVI 3.0
- Automatically identifies type of encoding
- Generate Analog NTSC/PAL and HD Video Test Patterns
- Provides 12V/1A power to the camera
- Data Monitoring
- Screen Shot, Video Recording, & Frame-by-Frame or Streaming Playback
- 16M color, backlit 4” TFT display
- Built-in, super-bright Flashlight
| Display | 4" TFT | 4" IPS Touchscreen | 4" TFT | 4" TFT | 4" TFT | 7" TFT Touchscreen |
|---|---|---|---|---|---|---|
| SD Analog | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| AHD / CVI / TVI | AHD 2.0 / CVI 3.0 / TVI 3.0 | AHD 2.0 / CVI 3.0 / TVI 3.0 | AHD 2.0 | AHD 2.0 / TVI 2.0 | AHD 3.0 / CVI 3.0 / TVI 3.0 | AHD 3.0 / CVI 3.0 / TVI 3.0 |
| IP (ONVIF Only) | H.264 and H.265 | H.264 | H.264 | H.265 | H.264 and H.265 | |
| Record Snapshot and Video | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| DHCP Server | ✓ | ✓ | ✓ | ✓ | ✓ | |
| 12VDC Output | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| POE Output | ✓ | ✓ | ✓ | ✓ | ✓ | |
| TDR Testing | Ethernet Only | Ethernet Only | Ethernet Only | Ethernet Only | ||
| Built-in DMM |
Specifications
|
Analog and HD Video Testing
|
|
|
Video Format
|
Auto recognizes NTSC/PAL, HD-CVI 3.0, HD-TVI 3.0, AHD 2.0
|
|
Test Pattern
|
Generates NTSC/PAL, HD-CVI, HD-TVI, or AHD test patterns (720P/1080P)
|
|
Signal Level
|
1vpp
|
|
Input/Output
|

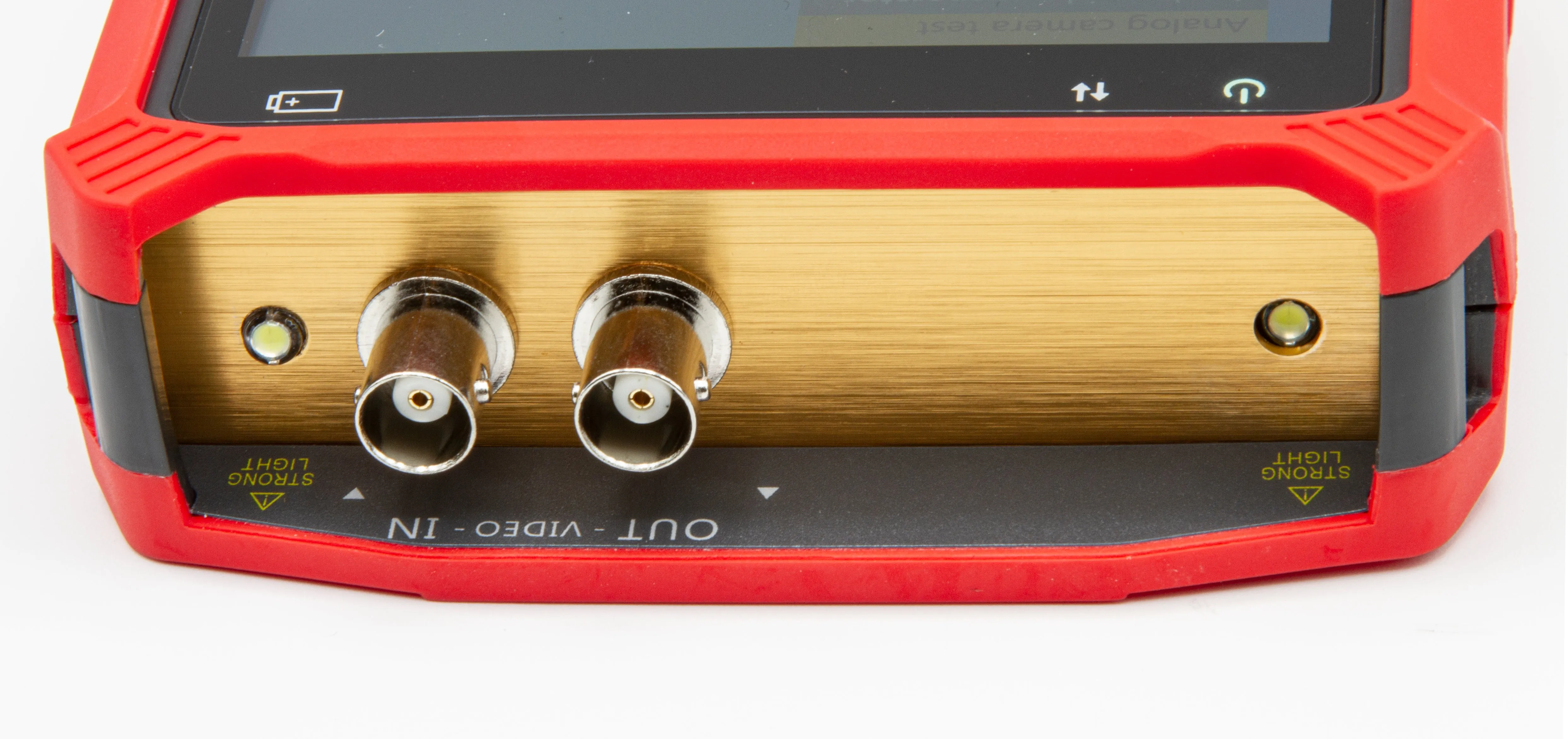

Video IN BNC, Video OUT BNC
|
|
Digital Zoom
|
Supports 8-level portion view
|
|
Capture
|
Take snap shot or record video
|
|
POWER OUTPUT
|
|
|
Output
|

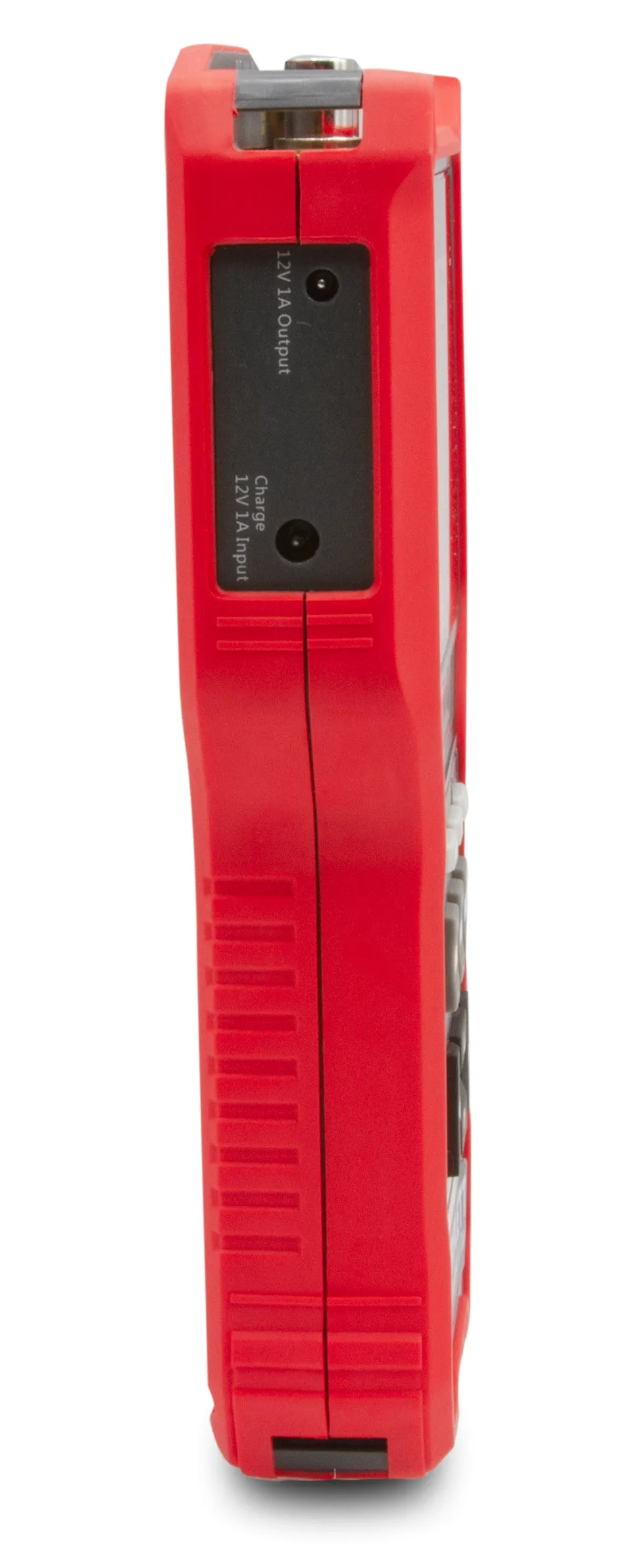

12V/1A power output to camera. Connector is 4mm diameter; pin is 1.6mm diameter
|
|
SYSTEM
|
|
|
Screen
|
4.0 inch TFT 800*RGB*480(WVGA) resolution, 16.7M color, backlight with adjustable brightness
|
|
Operation
|
Power key, 13 control keys
|
|
Language
|
User selectable -- English, French, Spanish, Russian, Chinese
|
|
Auto Shut-off
|
Disable / 5~60 minutes
|
|
Software
|
Supports online upgrade through USB using a Windows computer
|
|
POWER
|
|
|
Charger
|
12V/1A (5.5mm) power supply
|
|
Battery
|
Dedicated battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 10.4Wh
|
|
Battery runtime
|
Approximately 5 hours
|
|
Power Saving
|
Auto power off; Real-time battery level indicator
|
|
OTHER
|
|
|
Storage
|
8GB flash built in; use micro USB port to connect external device
|
|
LED Light
|
(2) 35lm LED lights
|
|
Dimensions
|
6.9 x 4.4 x 1.5" (175 x 113 x 37mm)
|
|
Weight
|
3.5lbs (1.6kg)
|

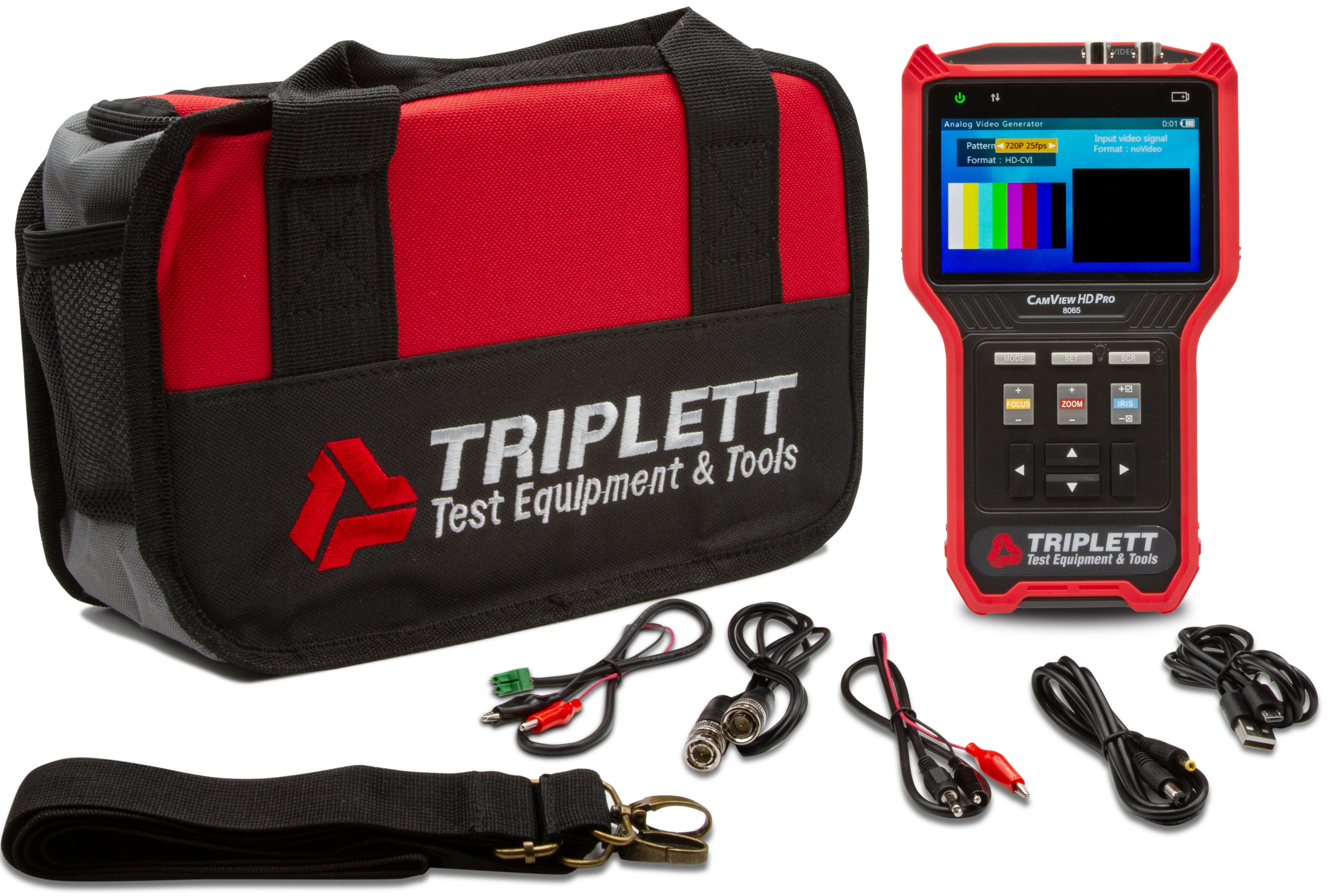

Includes
- BNC,
- RS485
- USB
- Audio, power,
- 12V Power Output Cables,
- Battery
- Belt Clip
- Tool Bag with Shoulder Strap
Downloads
FAQs
-
Q. I am getting wrong password and username message
A. User name and password information is not an error of the tester. This information is the camera only. Our testers do not have any passwords or user information requirements. If you are having trouble with passwords you need to contact the camera manufacturer or refer to their manual for default user name password information or details on any special set up specifications they may have for initializing their cameras. -
Q. How do I setup an AXIS Camera to allow ONVIF Users
A. Download our Document
and Document -
Q. Is there a software upgrade that will provide all analog formats to my device?
A. Updates for the unit are performed by connecting the unit to a network via the rj45 port, going into settings, scrolling down to “System Upgrade” and hitting the right arrow. The unit will automatically look for any new updates available. This process id detailed in the user manual section 4.7.3.
When viewing analog cameras the format and pattern can be changed in the “Analog video generator” section of the main menu.
