Coolerguys Single 120mm Fan Cooling Kit with Thermal Controller DX

840556001973 - Low-Speed Fan | Acrylic Bracket
840556001980 - Low-Speed Fan | Wood Bracket
840556075929 - Medium-Speed Fan | Acrylic Bracket
840556004912 - Medium-Speed Fan | Wood Bracket

Total Kit Contents:
(1)
(1)
(1) The bracket of your choosing (Acrylic, Metal or Wood)
(1)
(1) ***
(1)
(2 sets)
(4)

Completed Fan and Bracket Dimensions when assembled using the included parts:

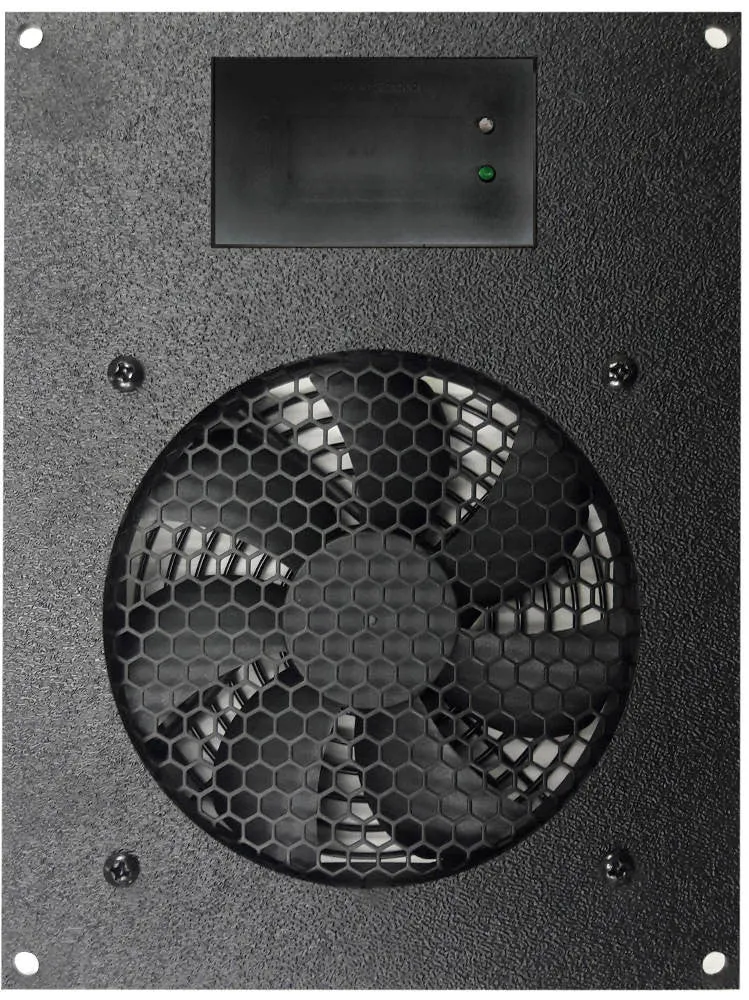

Acrylic: 8.50" x 6.50" x 1.38" (210 x 160 x 35mm)

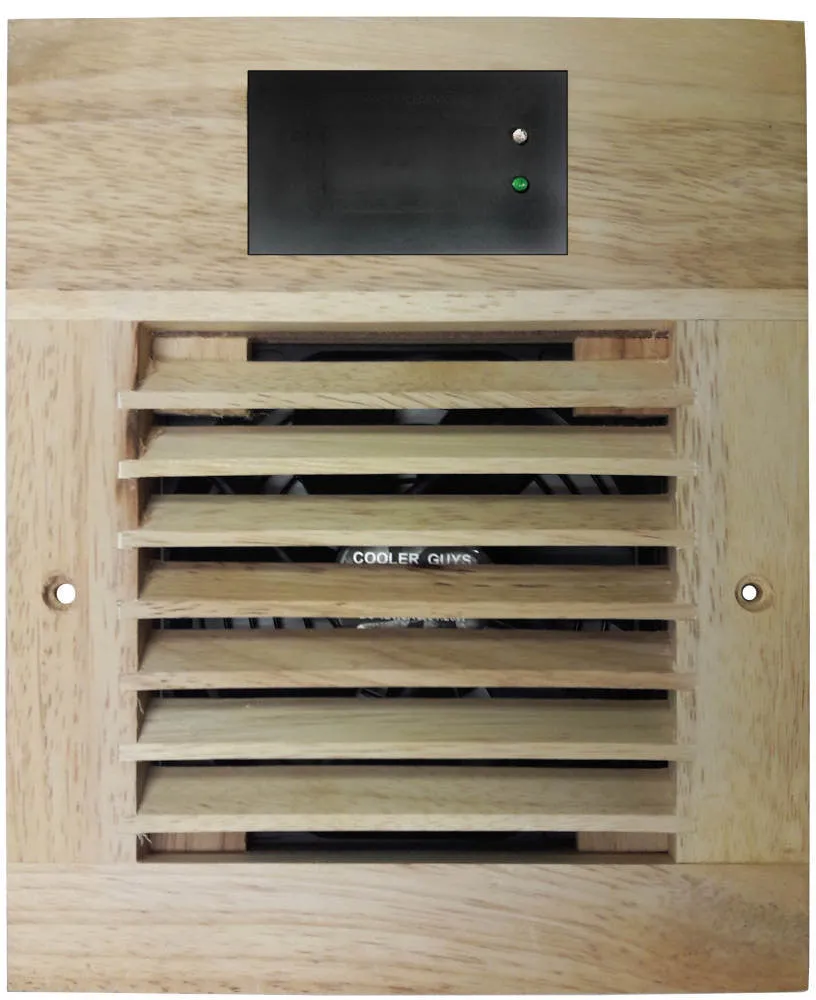

Wood: 8.75" x 7.10" x 1.77" (222 x 180 x 45mm)

Cutout size:
Acrylic: 7.10" x 5.00" (180 x 130mm)
Wood: 7.50" x 5.75" (190 x 145mm)

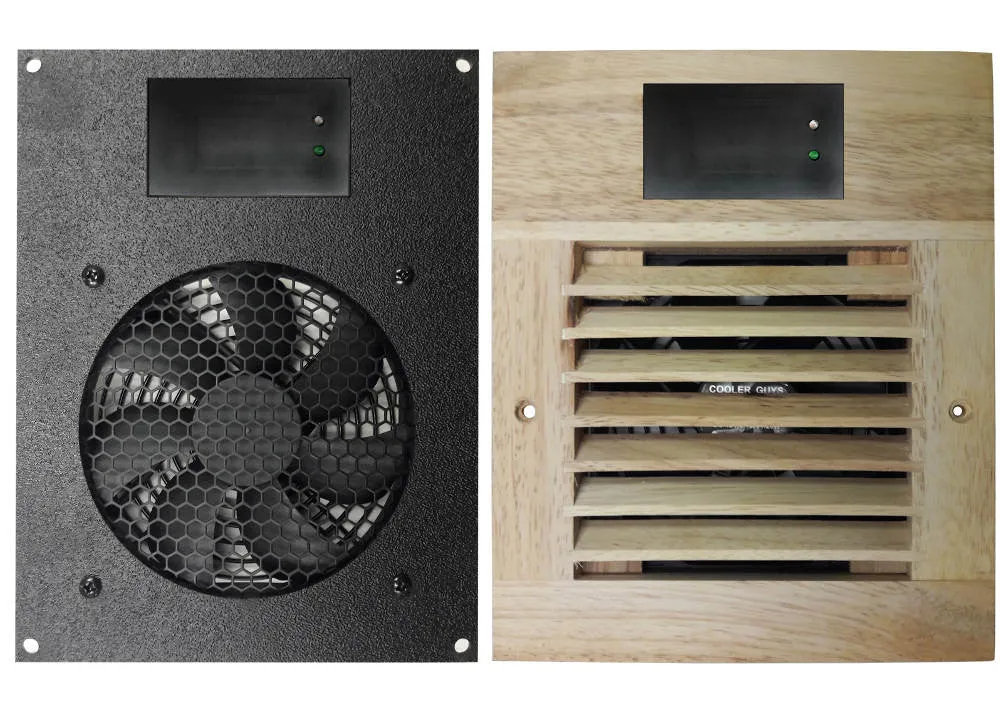

The DX denotes this as a bracket with a hole cut out to place the controller, otherwise, it is identical to the non-DX model.

We also offer our kits with a  as well as with (always on, great to use with switched AC powered outlets)

This particular *kit is for a single fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!

This fan can move 46 cubic feet (WxHxD) of air per minute (CFM) which is good for 1-2 components (up to 10 cubic feet of space with 1 shelf), this is just a general rule of thumb and it assumes you have adequate space for air to flow in from, and ventilation between shelving, we're currently working on an in-depth guide to airflow and cooling however in the meantime if you have questions we're here to

Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in the hole and attach with appropriate screws. Fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can !

FAN SPECIFICATIONS:

Fan Speed: 1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.10A
Operation temperature: -10 to 65 C
Storage temperature: -40 to 70 C
Airflow: 46 CFM
Noise Level: 20.4 dBA
Lifespan is based on the operating temperature of 95F (35C)

***Wood Grill does not come with the honeycomb grill or the nuts and bolts, it uses it's own screws to mount the fan to the bracket.

Includes:
(1)**
With Dual Ball Bearings this Fan is rated to last 50,000 hours running 365/24/7 (Nearly 6 years!)
The fan has a 30" (760mm) long cord, if you need to extend this length we have

(1)
This controller comes with a 24" (610mm) long probe, place it where you'd like to monitor the temperature. When the temperature reaches 88F (31C) the fan and anything else plugged into the unit will be activated until the temperature falls below 81F (27C)
It natively supports up to 4 3pin connections (12v only) but can handle more with the (maximum 1.5A).

Temperatures above are ( /- 1° F)

(1)

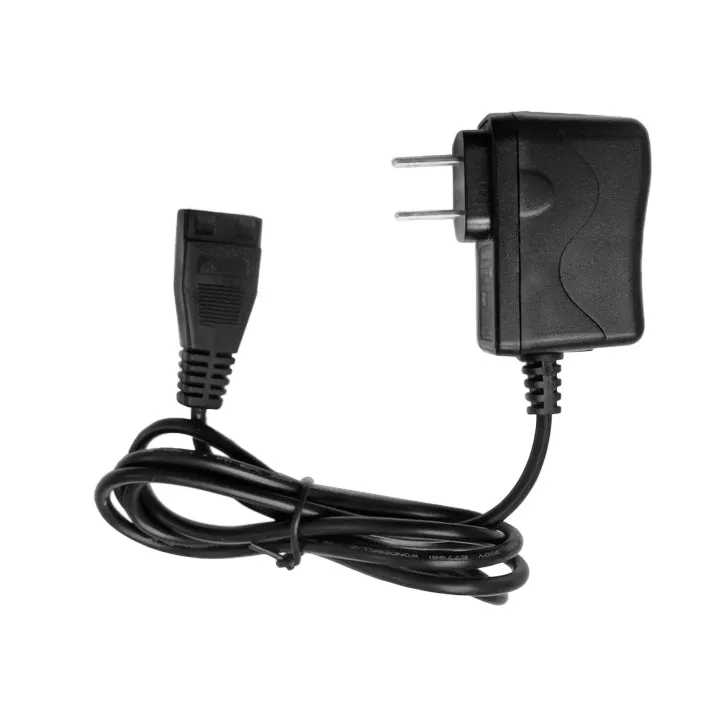

This is how the fan can run from a standard 2-prong wall socket since it is 100-240V AC powered it can be used in any region if you use to adapt to the appropriate plug.

All necessary screws, cables, and fasteners are included to assemble, install and operate this unit.

If you'd like to add additional brackets and fans to this kit you can find them . Non-thermal-controlled kits only have enough ports for the fans that come with it. The standard thermal-controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters .

Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?

(574 kb pdf)

**Wood Grill does not come with the honeycomb grill or the nuts and bolts, it uses it's own screws to mount the fan to the bracket.

We trust our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
