Coolerguys Single 80mm Fan Cooling Kit with Programmable Thermal Controller

840556002420

We also have kits with a as well as with (always on, great to use with switched power outlets)

All parts in our kits come with a 3 year replacement warranty at no cost to you

This particular *kit is for a single fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!
This kit can move 20 cubic feet (WxHxD) of air per minute (CFM)

Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in hole and attach with appropriate screws. Fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can !

Includes:

With Dual Ball Bearings this Fan is rated to last 60,000 hours running 365/24/7 (over 7 years!)
The fan has a 30" (760mm) long cord; if you need to extend this length we have
(
This controller comes with a 32" long waterproof probe, place where you'd like to monitor the temperature, when the temperature reaches the temperature you have programmed as the "On" setting the fan and anything else plugged into the unit will be activated until the temperature falls below the programmed "Off" setting.

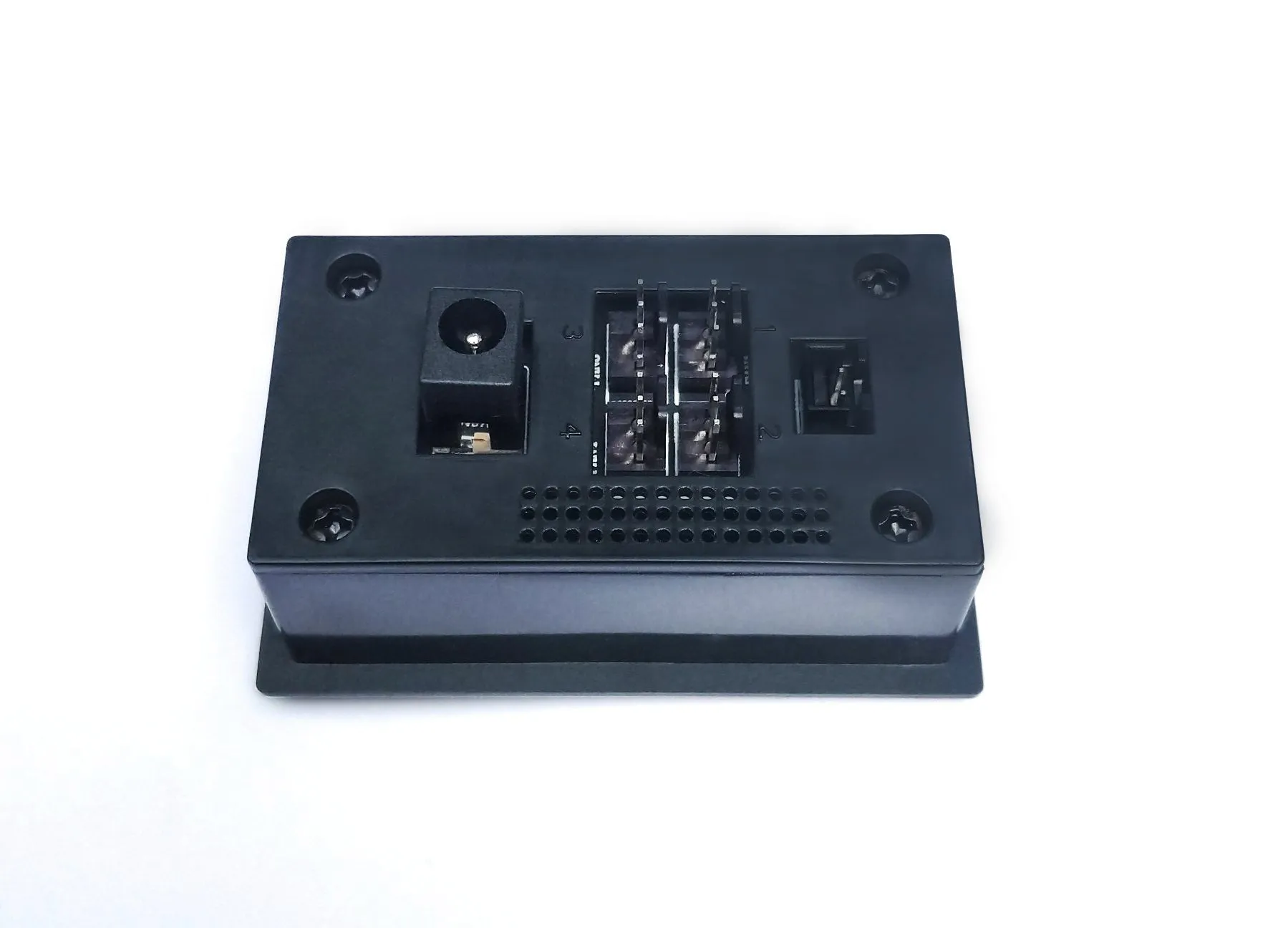

It natively supports up to 4 3pin connections (12v only) but can handle more with the (maximum 3A).
Optional  available to mount the controller.

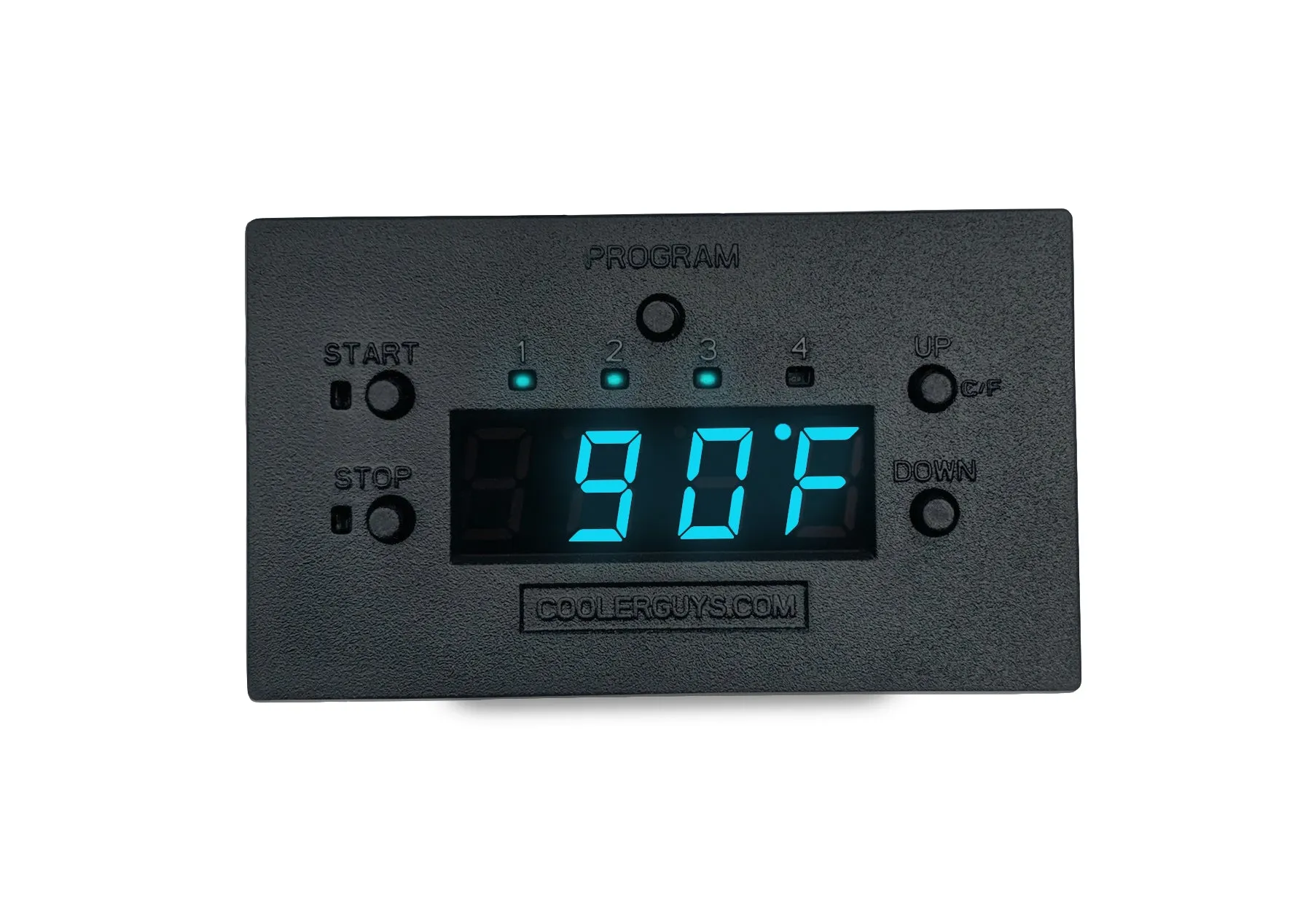

Temperatures above are ( /- 1° F) / Programmable range of 40F (4C) to 145F (63C) / LED display can be toggled on/off

All necessary screws, cables, and fasteners are included to assemble, install and operate this unit.

If you'd like to add additional brackets and fans to this kit you can find them , non-thermal controlled kits only have enough ports for the fans which come with it, the standard thermal controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters
Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?

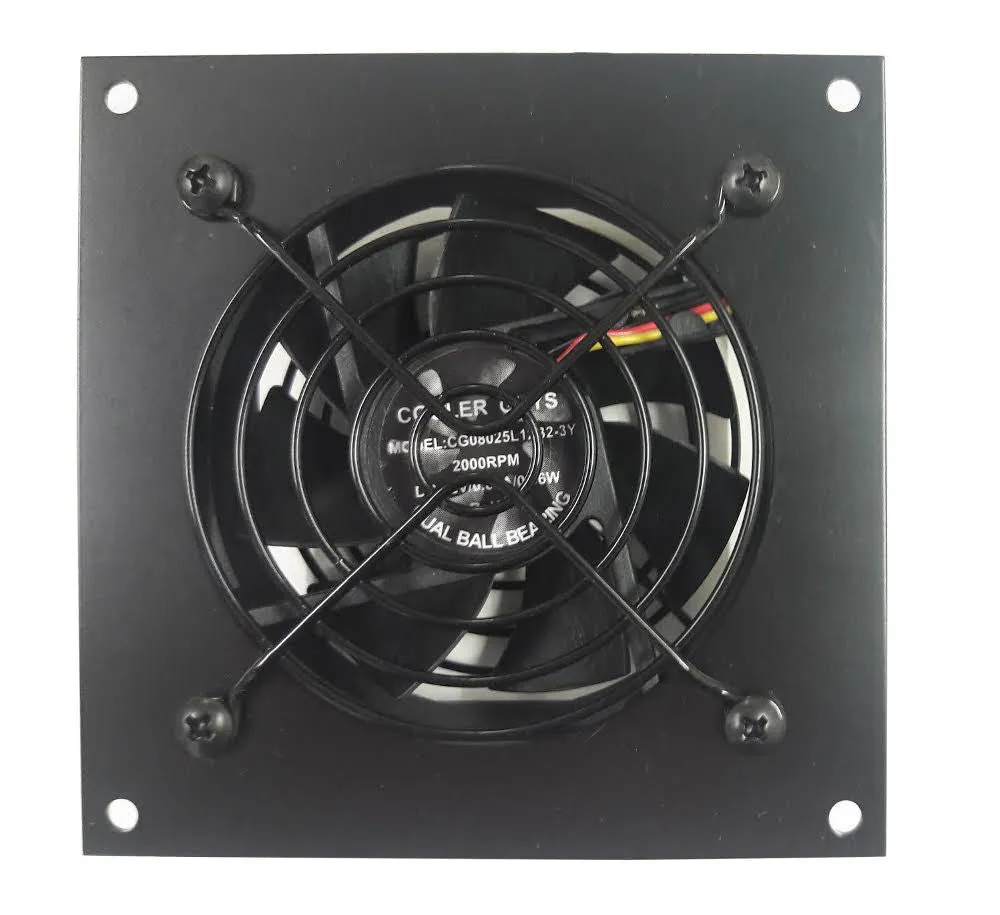

Completed Fan and Bracket Dimensions when assembled using the included parts:
Acrylic & Metal: 4.25" x 4.25" x 1.50" (108 x 108 x 40mm)

Cutout size:
Acrylic & Metal: 3.25" x 3.25" / 85 x 85mm

(574 kb pdf)

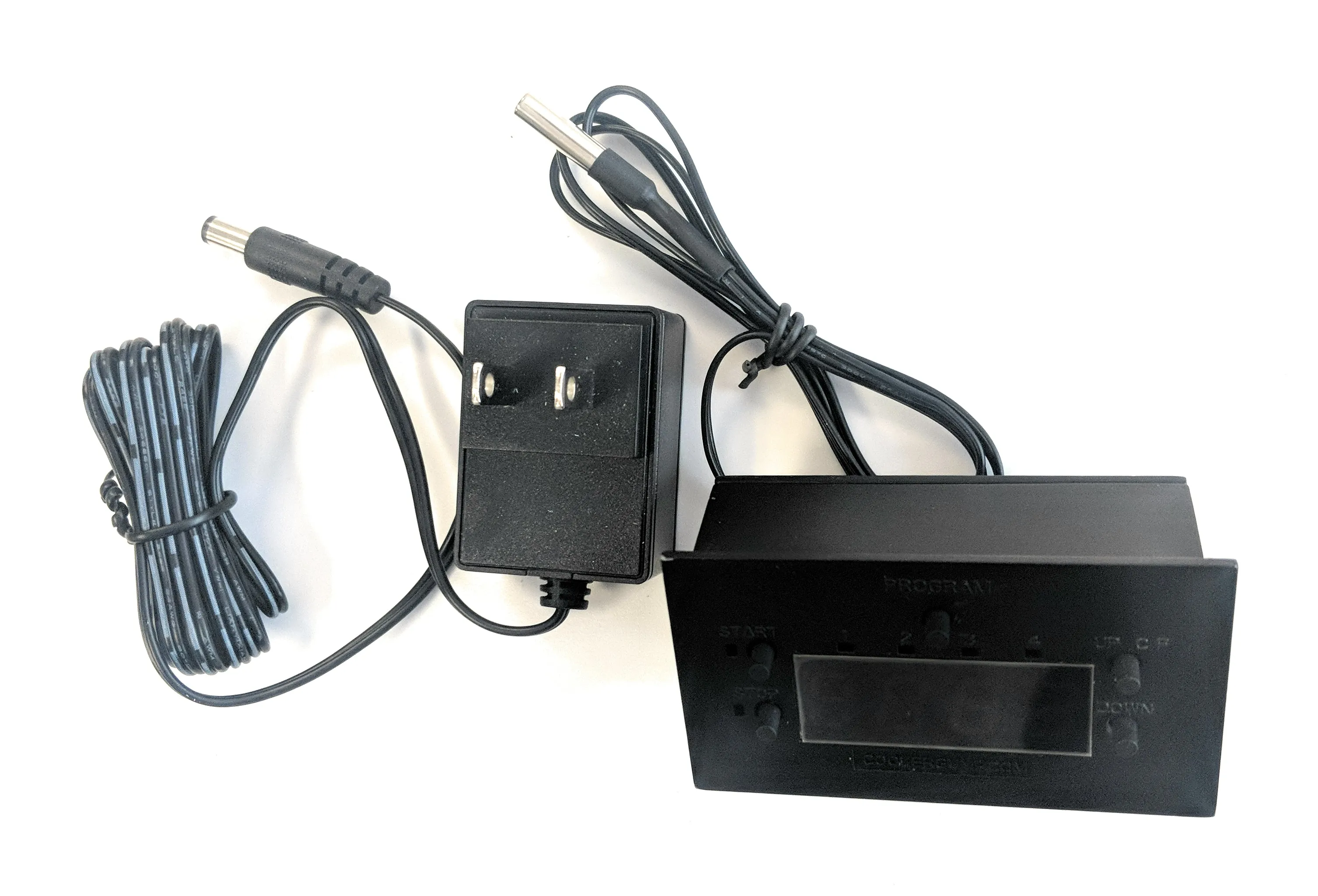

Total Kit Contents:
(1) Coolerguys 100-240V AC to 12V 1A Power Supply
(1) (1)
(1) A bracket of your choosing (Acrylic or Metal)
(4)
(8)
(4) #6 - 1/2" black Cabinet screws

*This is a kit and some assembly is required.

PRODUCT SPECIFICATIONS:
Fan Speed: 1500 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.08A
Operation temperature: -10 to 65 C
Storage temperature: -40 to 70 C
Airflow: 20 CFM
Noise Level: 17 dBA
Connector: 3 Pin w/ 30" Tail
Life: 50,000 hours (Nearly 6 continuous years)
Lifespan is based on the operating temperature of 95F (35C)



We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
