We also offer our kits with a as well as with (always on, great to use with switched AC powered outlets)
All parts in our kits come with a 3 year replacement warranty at no cost to you
This particular *kit is for a single fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!
This fan can move 30 cubic feet (WxHxD) of air per minute (CFM)
Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in hole and attach with appropriate screws. Fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can !
Includes:
(1)**
With Dual Ball Bearings this Fan is rated to last 50,000 hours running 365/24/7 (Nearly 6 years!)
The fan has a 12" (300mm) long cord, if you need to extend this length we have
(1)

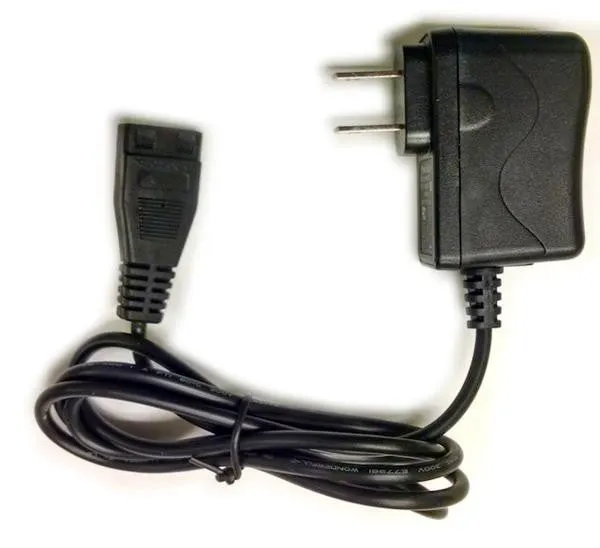

This is how the fan can run from a standard 2 prong wall socket, since it is 100-240V AC powered it can be used in any region if you use adapt to the appropriate plug.
(1)

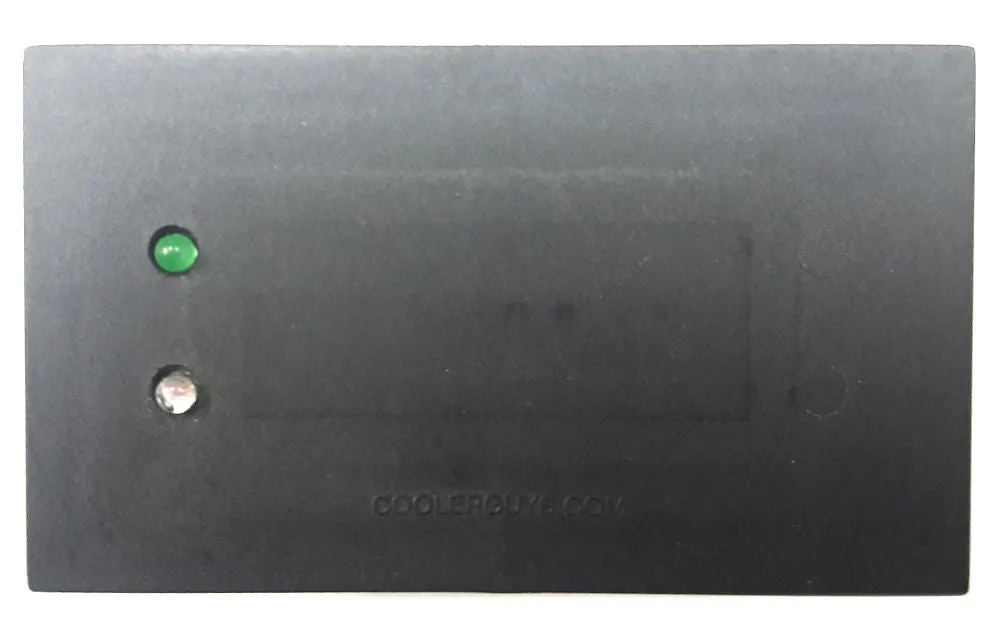

This controller comes with a 24" (610mm) long probe, place where you'd like to monitor the temperature, when the temperature reaches 88F (31C) the fan and anything else plugged into the unit will be activated until the temperature falls below 81F (27C)
It natively supports up to 4 3pin connections (12v only) but can handle more with the (maximum 1.5A)
Temperatures above are ( /- 1° F)
All necessary screws, cables, and fasteners are included to assemble, install and operate this unit.
If you'd like to add additional brackets and fans to this kit you can find them , non-thermal controlled kits only have enough ports for the fans which come with it, the standard thermal controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters
Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?

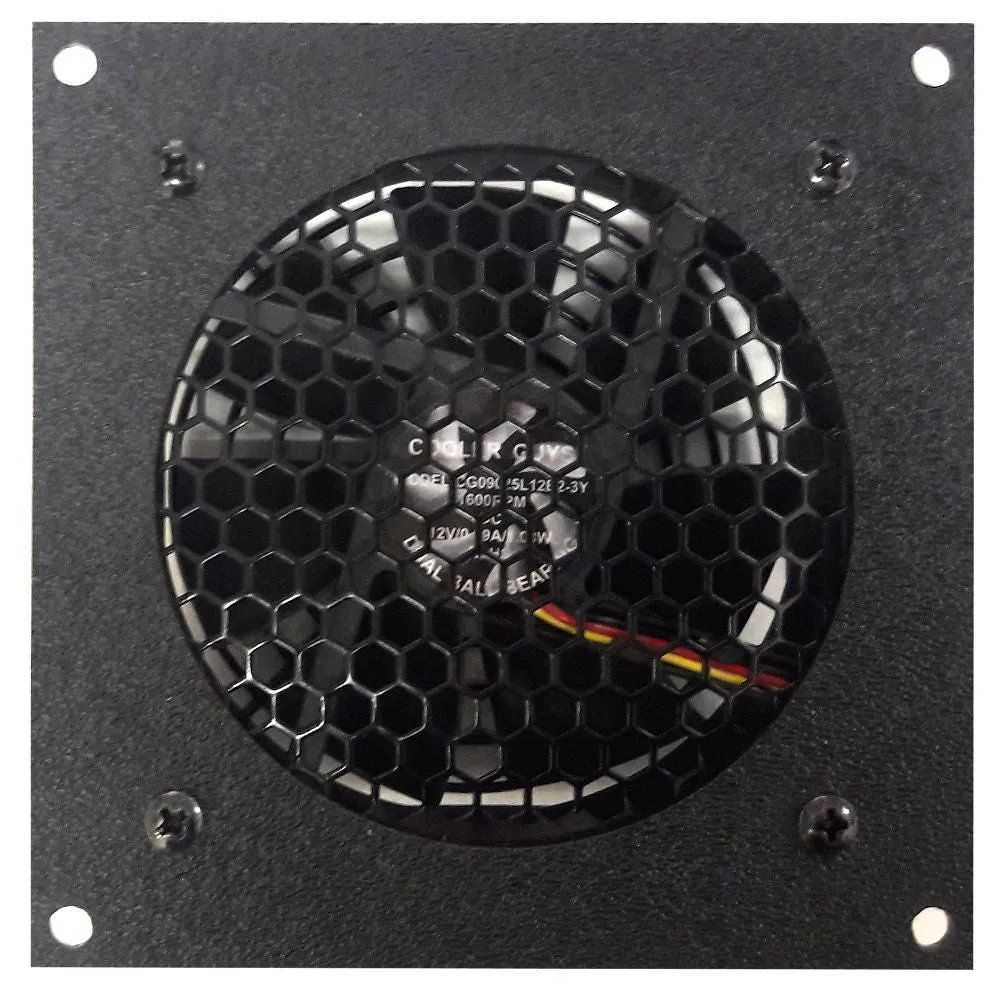

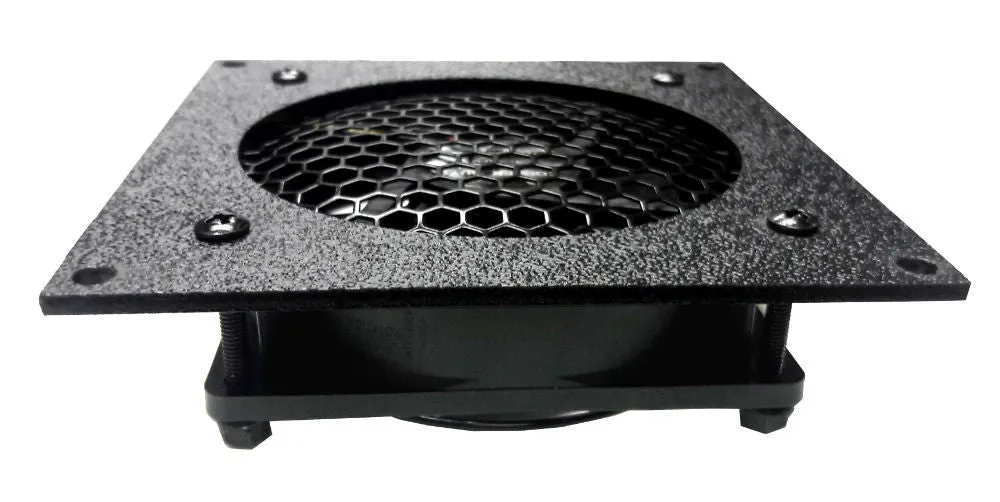

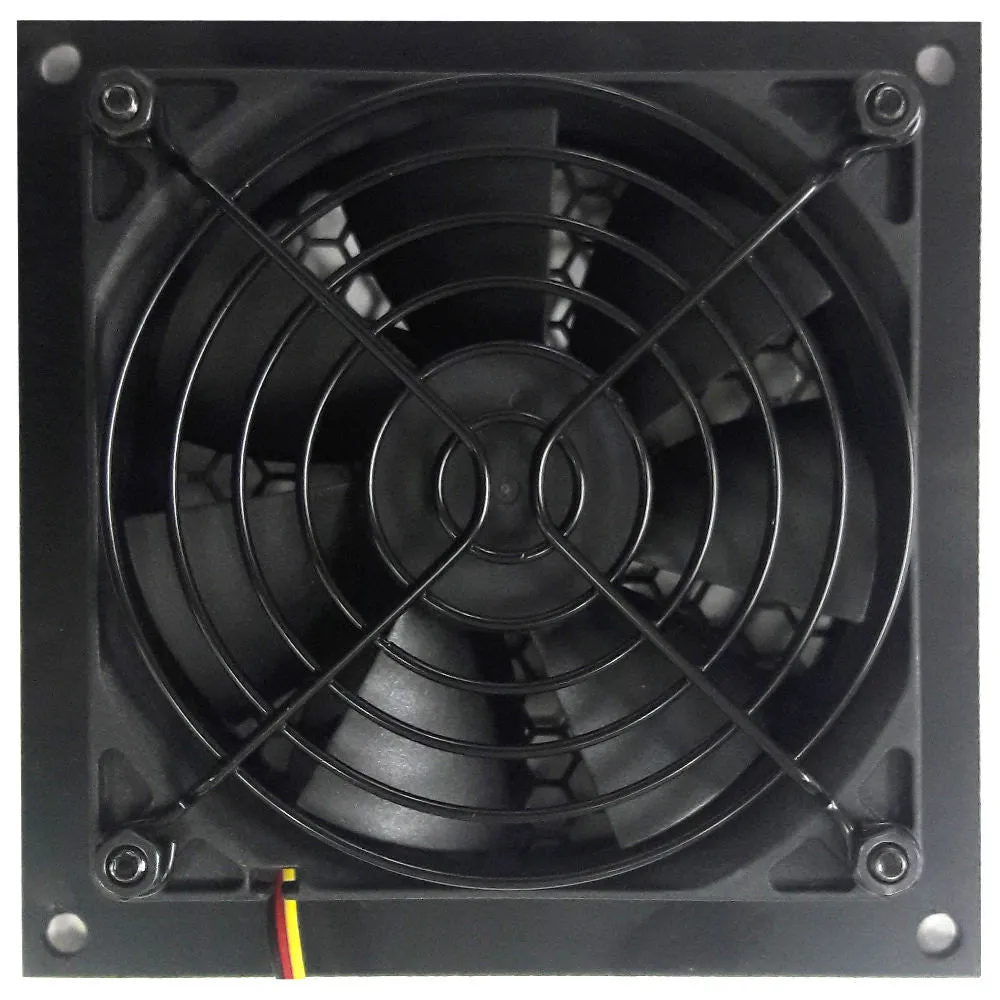

Completed Fan and Bracket Dimensions when assembled using the included parts:
4.75" x 4.75" x 1.38" (120 x 120mm x 35mm)
Cutout size:
3.75" x 3.75" (95 x 95mm)
(574 kb pdf)
Total Kit Contents:
(1)
(1)
(1)
(1) Acrylic bracket
(1) (1) Black 92mm Honeycomb Grill
(8)
(4) #6 - 1/2" black Cabinet screws
*This is a kit and some assembly is required.
Unit Specs:
1500 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.09A
Operation temperature: -10 to 65 C
Storage temperature: -40 to 70 C
RPM: 1500 /- 10%
CFM: 30.39
dB: 18
Connector: 3 Pin w/ 12" Tail
Life: 67,000 hours
