We also offer our kits with a  as well as with (always on, great to use with switched AC powered outlets)

All parts in our kits come with a 3 year replacement warranty at no cost to you

This particular *kit is for a three fan unit meant to cool your cabinet, multimedia center, aquarium, home grow op, brewing project or whatever else that may need cooling, the only limit is your imagination!
These fans move a combined 138 cubic feet (WxHxD) of air per minute (CFM) which is good for 2-6 components (up to 20 cubic feet of space with 2-4 shelves), this is just a general rule of thumb and it assumes you have adequate space for air to flow in from, and ventilation between shelving, we're currently working on an in depth guide to airflow and cooling however in the mean time if you have questions we're here to

Can be mounted on any side of a cabinet, where room permits (cutout dimensions below). Insert completed cooler assembly in hole and attach with appropriate screws. Fan can be set to be either an intake or exhaust, simply mount the fan to the bracket pointing in the desired direction before installing (if you are looking at the label the air will flow towards you)
If you need additional information you can !

Includes:
(3)**
With Dual Ball Bearings this Fan is rated to last 67,000 hours running 365/24/7 (Nearly 6 years!)
The fan has a 30" (760mm) long cord, if you need to extend this length we have

(1)

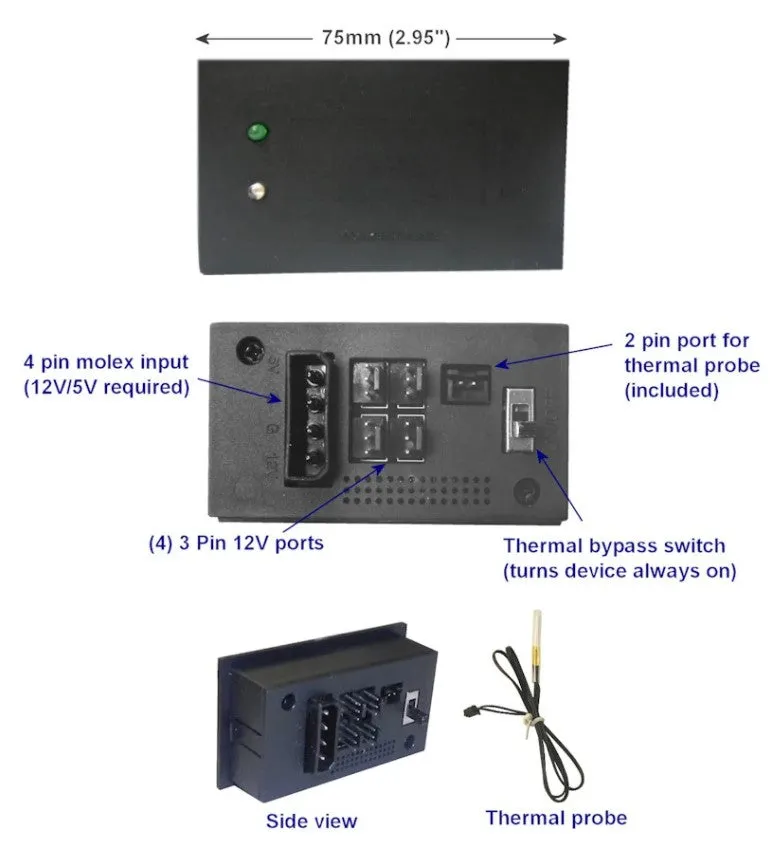

This controller comes with a 24" (610mm) long probe, place where you'd like to monitor the temperature, when the temperature reaches 88F (31C) the fan and anything else plugged into the unit will be activated until the temperature falls below 81F (27C)
It natively supports up to 4 3pin connections (12v only) but can handle more with the (maximum 1.5A)

Temperatures above are ( /- 1° F)

(1)

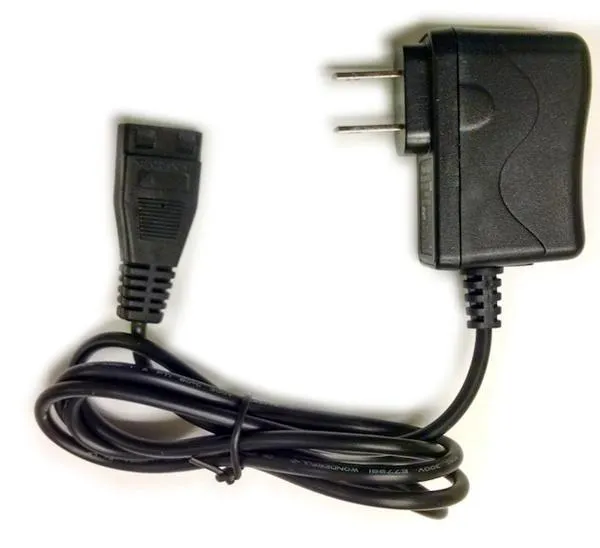

This is how the fan can run from a standard 2 prong wall socket since it is 100-240V AC powered it can be used in any region if you use to adapt to the appropriate plug.

All necessary screws, cables, and fasteners are included to assemble, install and operate this unit.

If you'd like to add additional brackets and fans to this kit you can find them , non-thermal controlled kits only have enough ports for the fans which come with it, the standard thermal controlled and programmable controllers have 4 native ports, if you need more ports for fans we have adapters here

Need an anti-static workplace? what about zip-ties, cable anchors or sleeving to help clean up your installation?

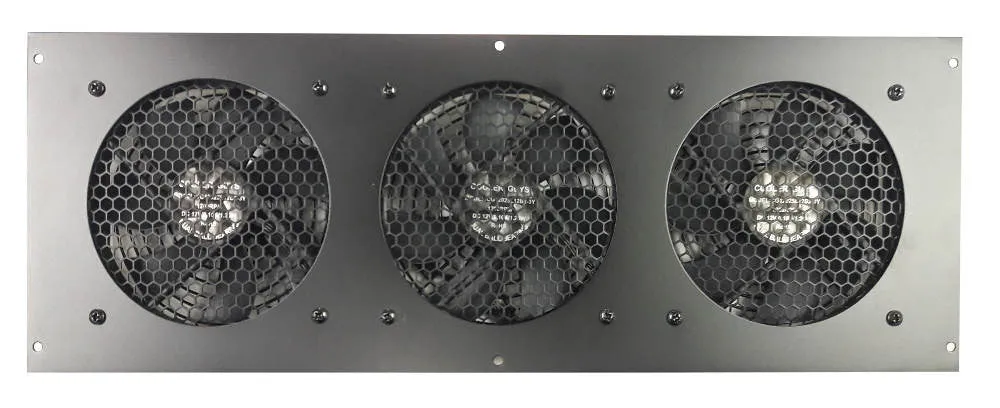

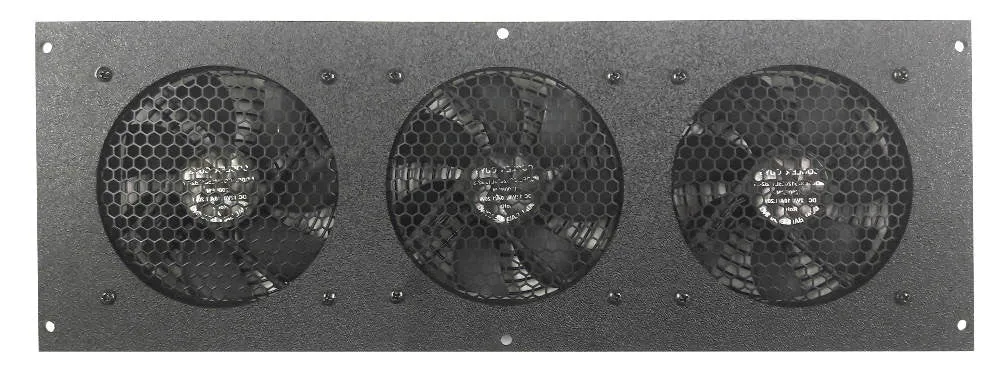

Completed Fan and Bracket Dimensions when assembled using the included parts:
Acrylic & Metal: 17.75" x 6.5" x 1.38" (159 x 450 x 35mm)

Cutout size:
Acrylic & Metal: 16" x 5" (400 x 130mm)

(574 kb pdf)

Total Kit Contents:
(1)
(3)

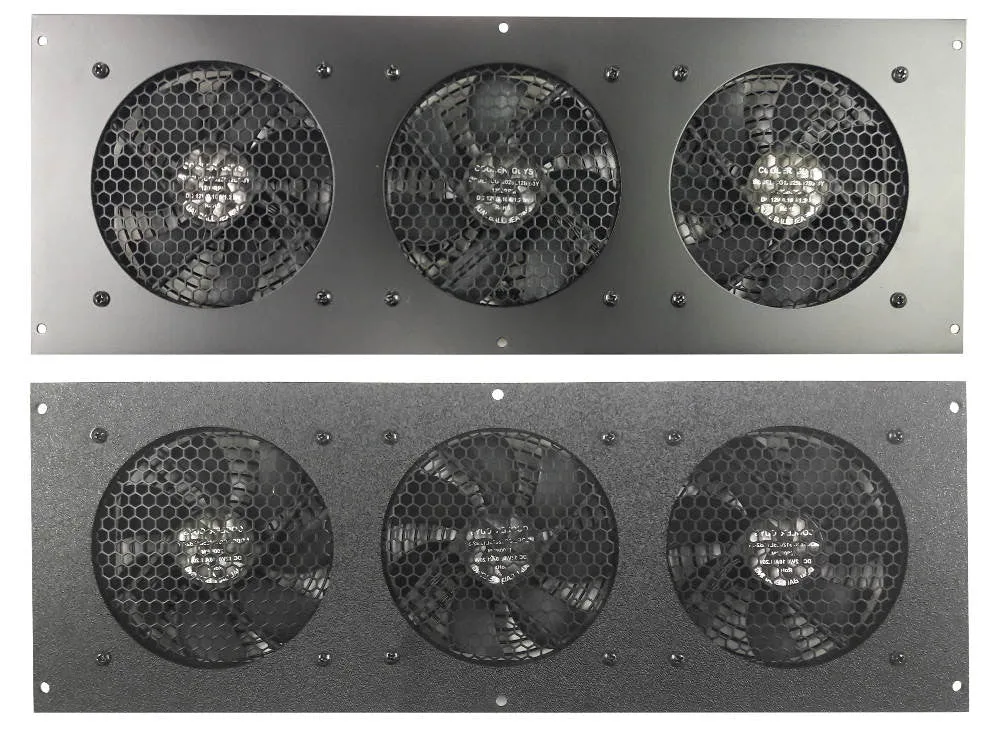

(1) Bracket of your choosing (Acrylic or Metal)
(1)
(3)
(3)
(24) Fan nuts and bolts
(6) #6 - 1/2" black Cabinet screw

*This is a kit and some assembly is required.

1200 RPM
Operation Voltage: 6.5~13.8 Volts
Input current: 0.30 Amp MaxThermal C
Operation temperature: -10 to 65 C
Storage temperature: -40 to 70 C
RPM: 1200 /- 10%
COMBINED CFM: 138
dB: 20.4

We trust in our products at Coolerguys and test everything that is sent out! We happily extend a three-year replacement warranty to all our Coolerguys branded products.
