Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Backlighting | LED Backlight |
| CPU Speed | 600 MHz |
| Display Colors | 16M Color |
| Display Resolution | 800 x 480 Pixels |
| Display Size | 7 Inch Display |
| HMI Type | Touch Screen HMI |
| IP Rating | IP65 |
| Memory | 128 MB |
| Mounting Type | Panel Mount |
| Number of Ports | 4 Port |
| Processor Type | 32-bit RISC |
| Resolution, Display | 800 × 480 |
| Series | |
| Size, Screen | 7 in. |
| Supply Voltage | 24VDC VDC |
| Technology | TFT LCD Display |
| Voltage Rating | 24 VDC |
Overview

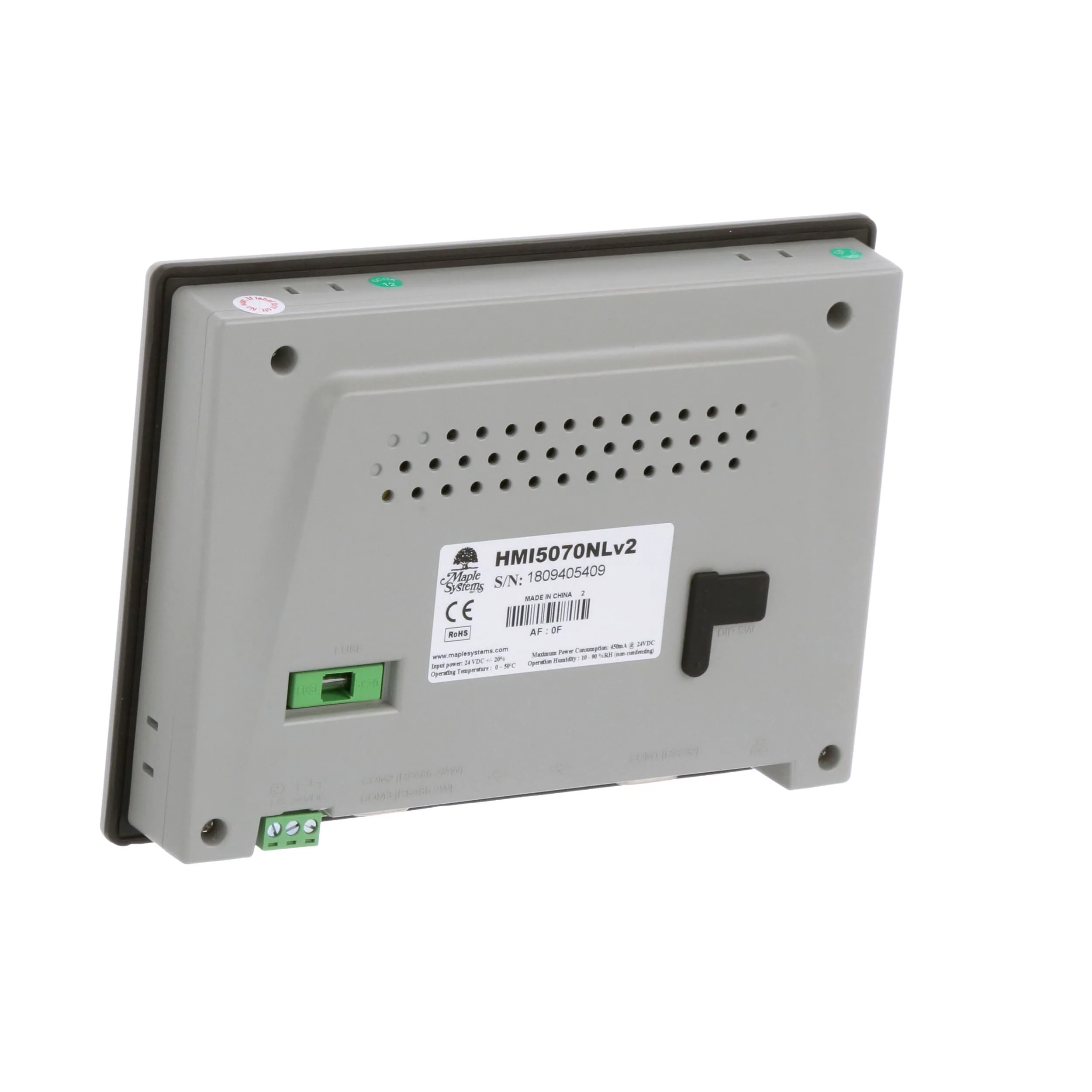

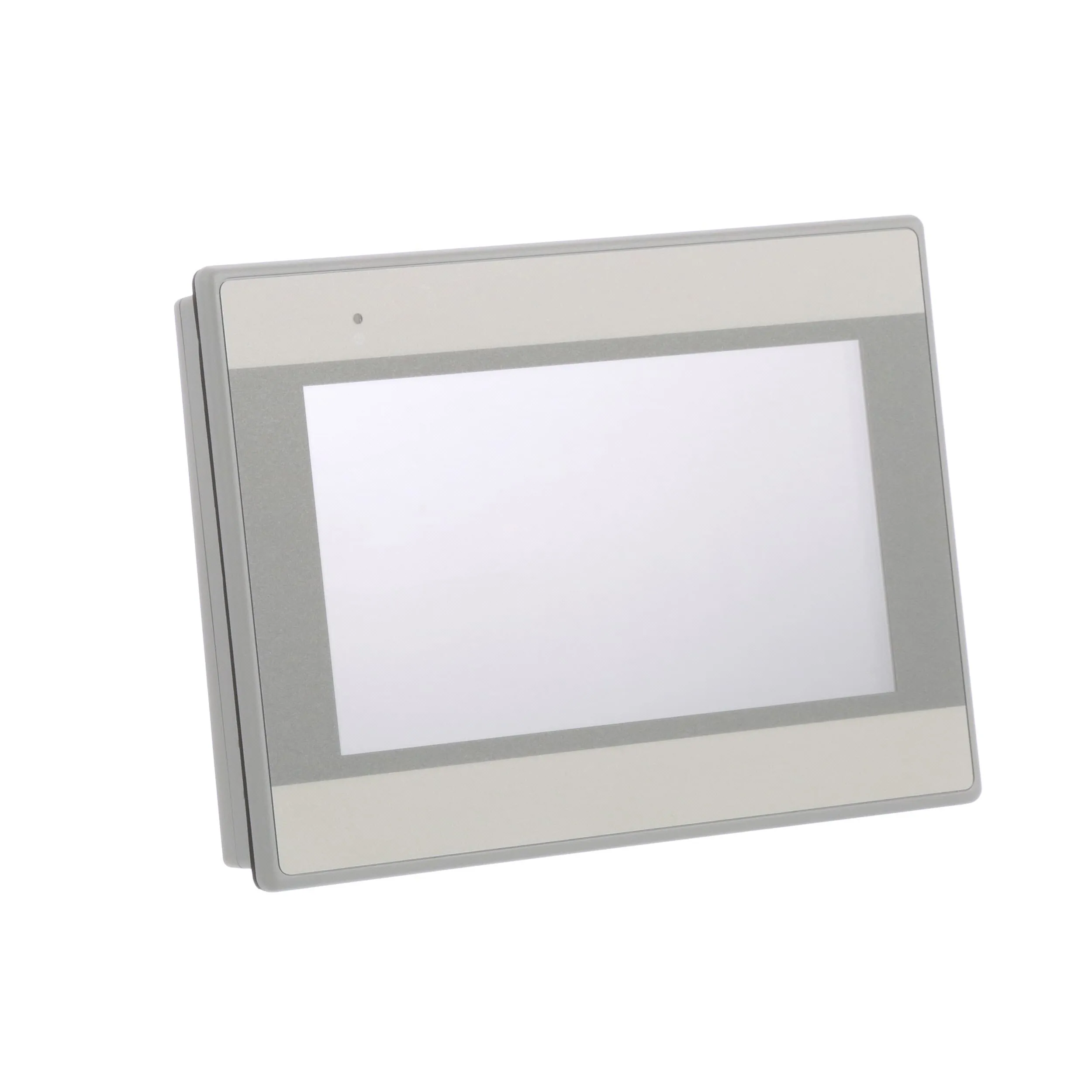

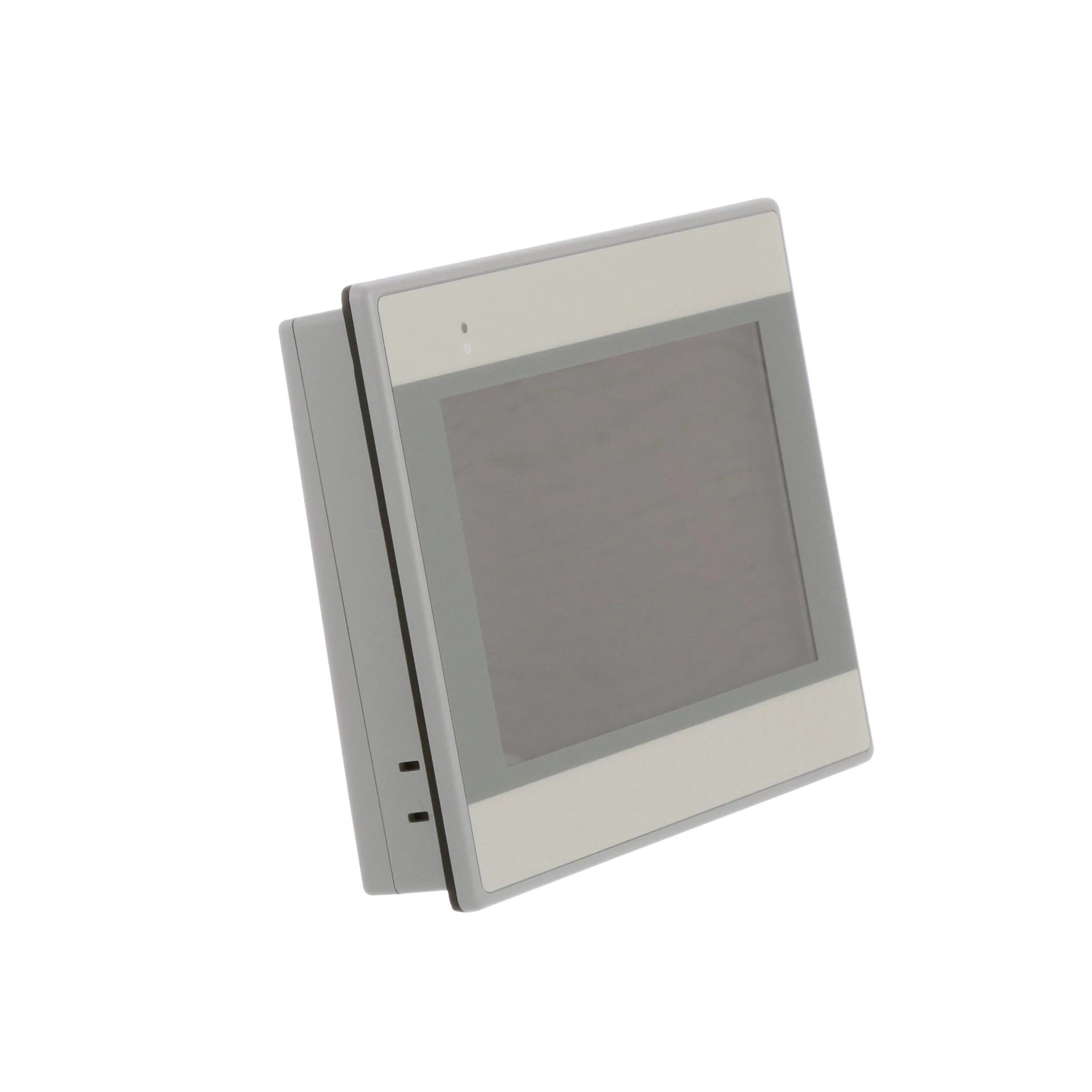

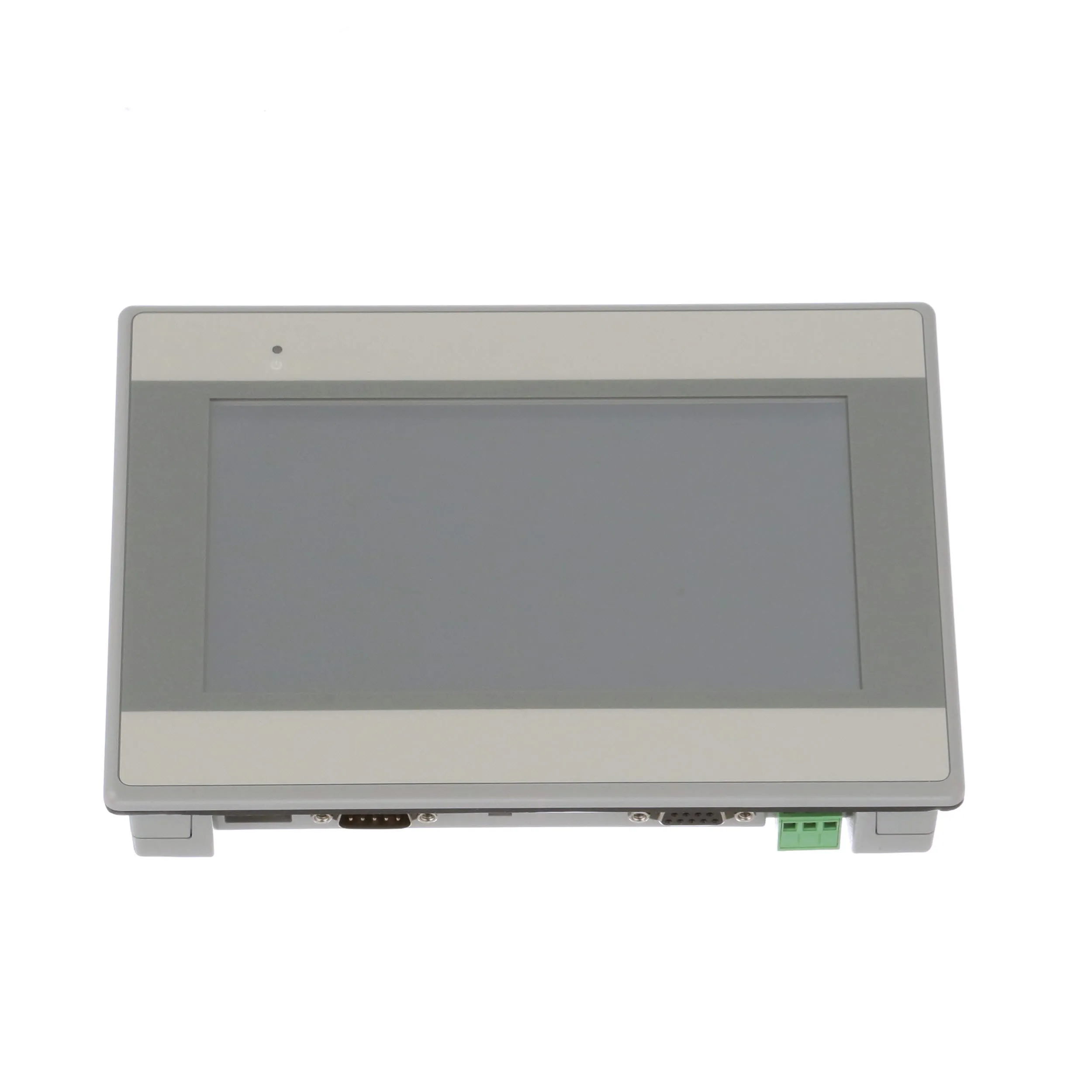

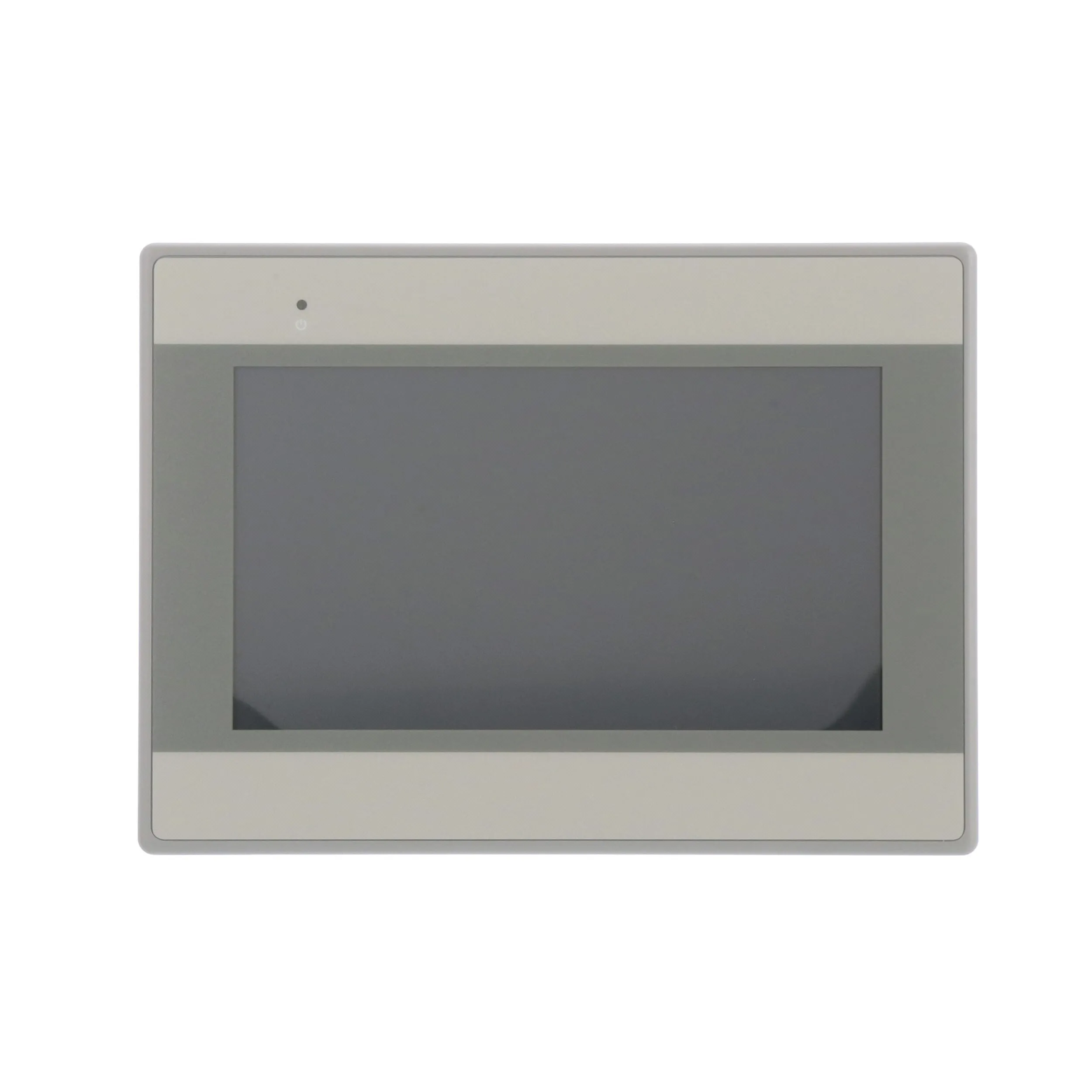

Maple Systems Advanced HMI Series | HMI5070NL — Modern Touchscreens, Intuitive Software and Functionality:
The HMI5070NL offers a slim design, sleek look, and affordable price—a perfect choice for those requiring a high-quality, value-priced HMI. The unit is programmed with easy-to-use EZwarePlus and can be programmed to display in either landscape or portrait mode. A compact design lends itself to mounting in tight conditions.
The Advanced HMI series offers the best value in today’s HMI marketplace with benefits including modern touchscreens, intuitive software, and great functionality. Enjoy enhanced features, trusted performance, affordable pricing, and unparalleled support to meet your most demanding automation needs.
Features:
Series Features:
