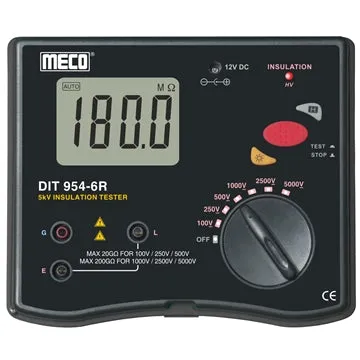

The Meco DIT 954-6R Digital Insulation Tester is a high-performance instrument designed for testing insulation resistance in high-voltage electrical systems. With 6 selectable test voltage ranges up to 5000V DC and measurement capabilities up to 200GΩ, this tester is ideal for industrial, utility, and commercial applications. Its IP44-rated protection, safety certifications, and inbuilt protection circuit ensure reliable and safe operation.

Key Features:

• 3½ Digit Display: Clear 1999-count LCD display with green backlight for easy readability.
• 6 Selectable Voltage Ranges:
  • 100V, 250V, 500V, 1000V, 2500V, 5000V DC
• Insulation Resistance Measurement: Measures resistance up to 200GΩ for high-voltage systems.
• Single-Person Push Button Operation: Simple and efficient for quick testing.
• Data Hold Function: Retains the displayed reading for easy reference.
• Annunciators on Display: Provides clear status indicators.
• Auto-Range for Insulation Tests: Automatically selects the best range for measurement.
• High-Voltage Indicator: Red LED indicator for high voltage conditions.
• Inbuilt Protection Circuit: Prevents damage from reverse voltages.
• Battery Operated with AC Adapter Support: Provides flexibility for fieldwork.
• Over Voltage Protection:
  • CAT III, 600V rating for added safety.
• Compliance with Standards:
  • IS10656-1983 (Indian Standard)
  • IEC 61326-1 Class B EMC Standard
  • IEC/EN 61010-1 & 61010-31 Safety Standards
• IP44 Protection: Dust and water resistance for rugged environments.

Accessories Included:

• High Voltage Insulation Test Leads – 1 Set
• AC Adapter – 1 Pc
• 1.5V 'AA' Batteries – 8 Pcs (Pre-installed)
• Heavy Duty Carry Bag – 1 Pc
• Instruction Manual – 1 Pc
