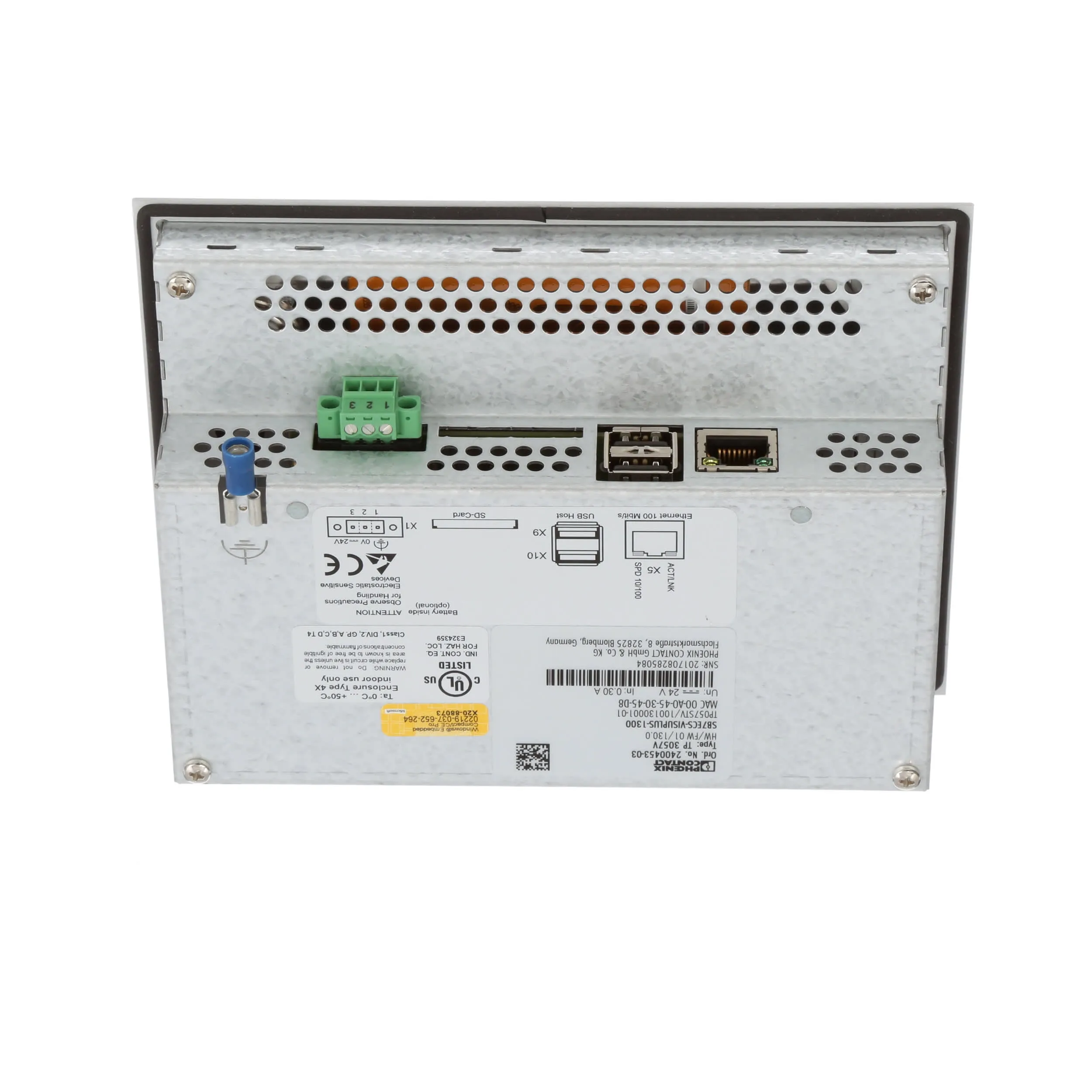

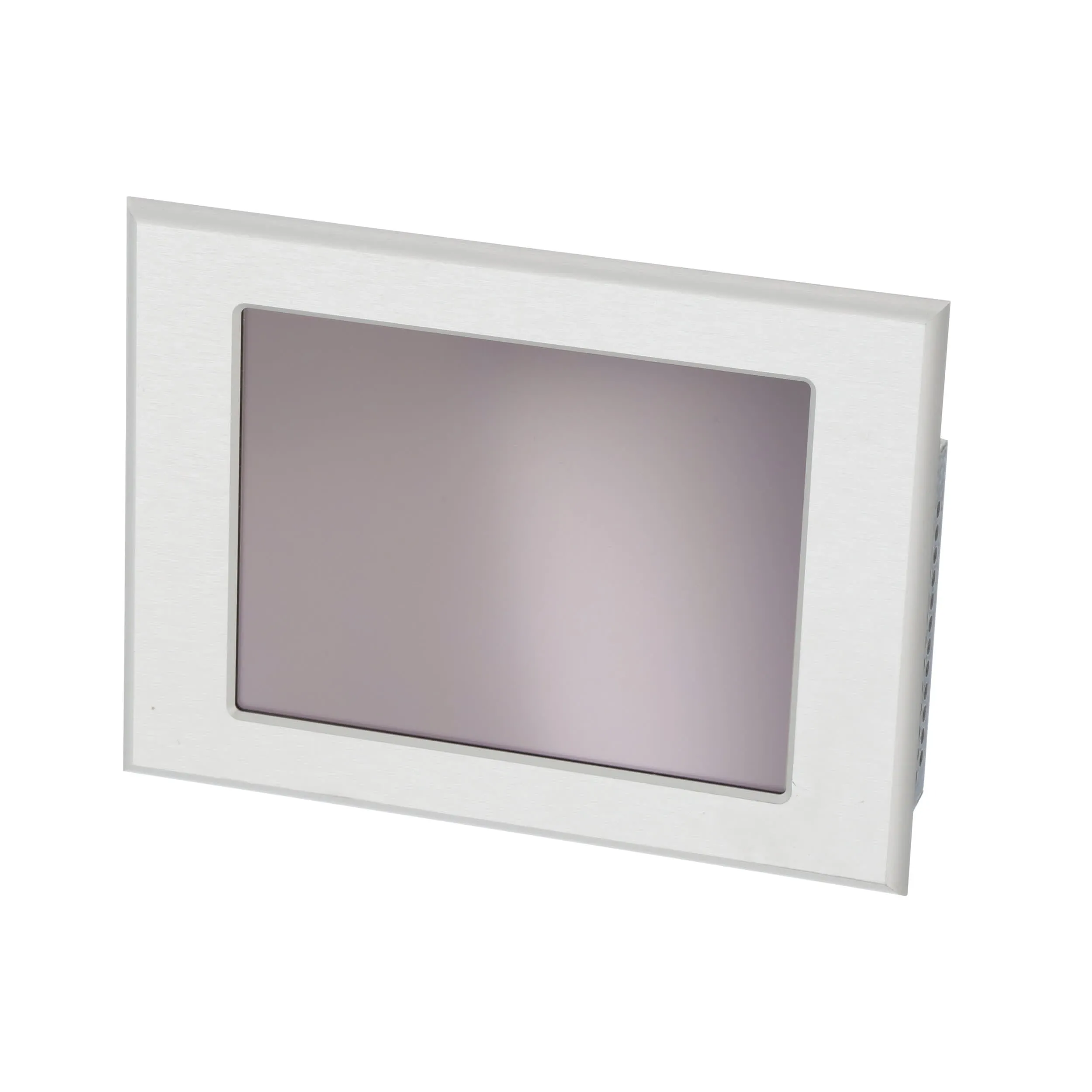

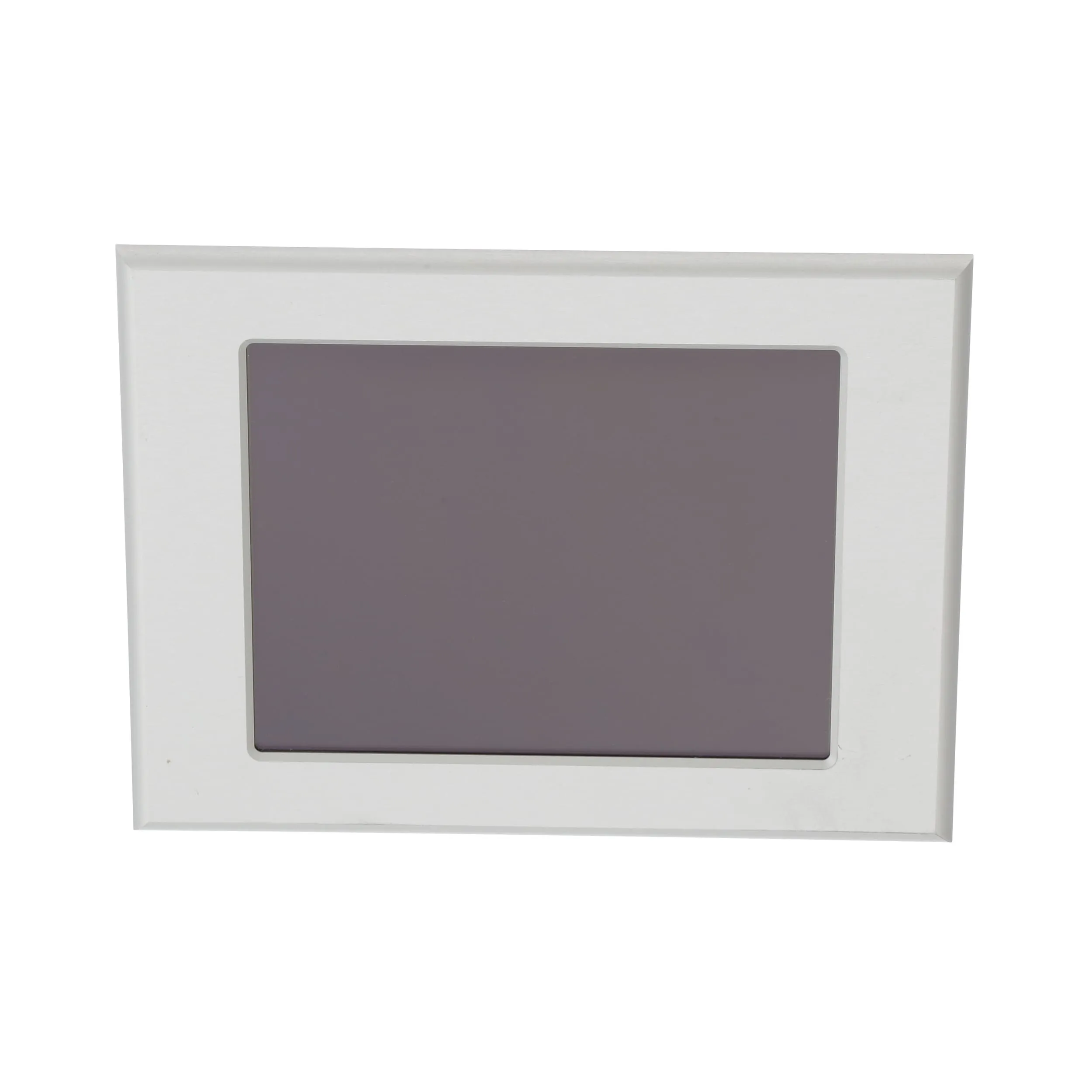

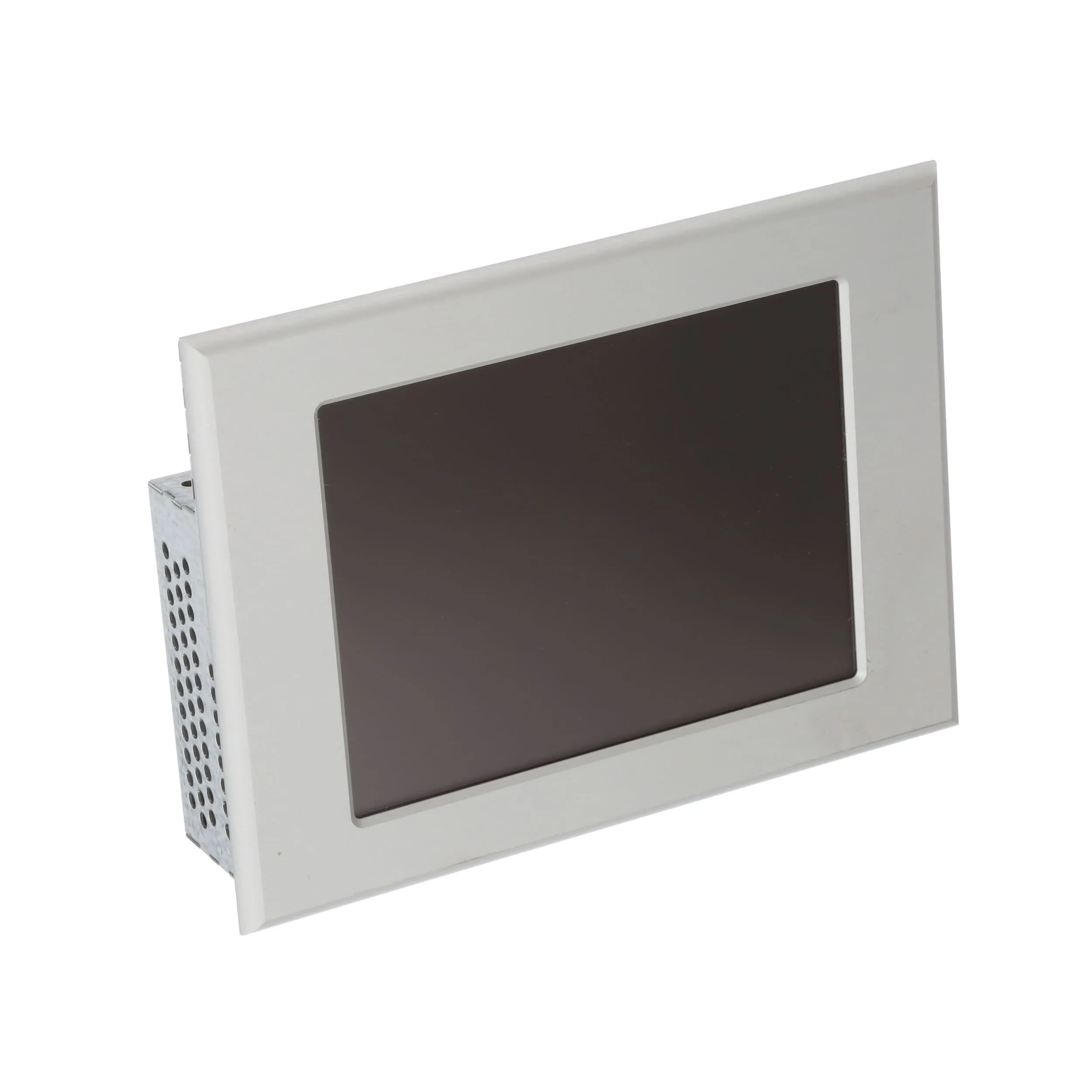

Name: Phoenix Contact 2400453
SKU: 512926

Product Details ＋

Product Attribute	Attribute Value
Alternate Mfr Part Number	TP 3057V
Approvals	UL Listed, cUL Listed, cULus Listed, UL Listed, cUL Listed, cULus Listed
Backlighting	LED Backlight
Display Resolution	640 x 480 Pixels
HMI Type	Touch Screen HMI
Operating System	Windows® Embedded Compact 7
Processor Type	ARM® Cortex®-A8, 800 MHz
Resolution, Display	640 x 480 Pixels
Series
Supply Voltage	24 VDC
Technology	TFT LCD Display
UPC Code	4055626055978

Overview

Touch panel with 14.5 cm/5.7" TFT active-display (Analog resistive (polyester)), 640 x 480 Pixel (VGA), 262144 colors , ARM® Cortex®-A8, 800 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows® Embedded Compact 7 and user software: Visu / AX OPC Server. (bus system: without)

Features:

Easy installation, low installation depth, and compact design

Short startup time

Visu RT and AX OPC server integrated as standard in all devices

Easy IP address allocation and active connection monitoring thanks to PROFINET-Device according to Conformance Class B

Display available in sizes from 14.5 cm (5.7") to 39.05 cm (15.4")

Versatile communication options, even with third-party systems, thanks to numerous drivers and interfaces

Energy efficient due to LED backlighting

Acoustic warning from alarms via integrated buzzer (85 dB)
