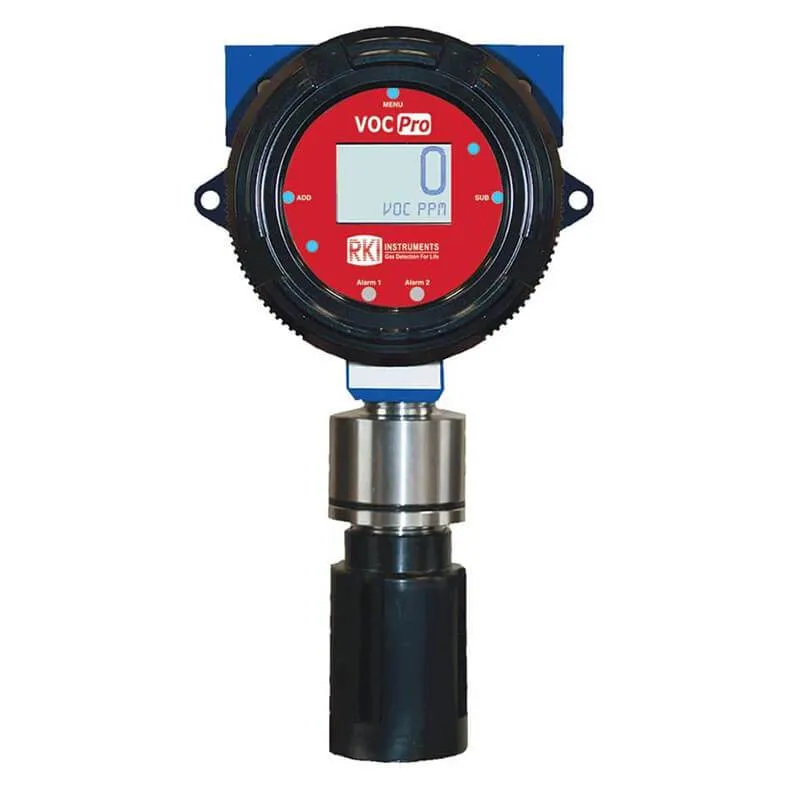

RKI VOC Pro Series (10.6 eV PID) High Range Sensor/Transmitter with j-box is a 3-wire explosion proof VOC gas detector that uses a PID sensor to detect a variety of gases. Wired power (12 to 35 VDC) with 4-20 mA analog and RS-485 Modbus outputs are standard. Magnetic switches allow for non-intrusive calibration while in the field as well as full system settings and diagnostics.

Please call Customer Service at 800-829-9580 if you have questions in choosing the correct product.

Designed to work with all RKI Beacon controllers, as well as most DCS / PLC systems: , , , or Controllers.

Applications: Petrochemical plants, Refineries, Water & wastewater treatment plants, Pulp & paper mills, Manufacturing facilities, Automotive, Semiconductor plants, Chemical plants

Key Features:

• PID sensor options: 10.6 eV ppm Wired power (3-Wire), 12 to 35 VDC operating voltage Operating temperature range -40°C to 54°C Graphical LCD with LED backlight 3 Push-button interface (ADD, MENU, SUB) with corresponding magnetic, non-intrusive switches 2 Individually configurable alarms 2 Front panel LED indicators (amber and red) 2 Optional fully programmable alarm relays (dry contacts) Output options: 4-20mA (3-wire) analog, RS-485 modbus (4 wire) 1-Year warranty (see specifications)

Part Numbers:
66-6193-10 - 0-100 ppm
66-6193-50 - 0-500 ppm
66-6193-2K - 0-2000 ppm
