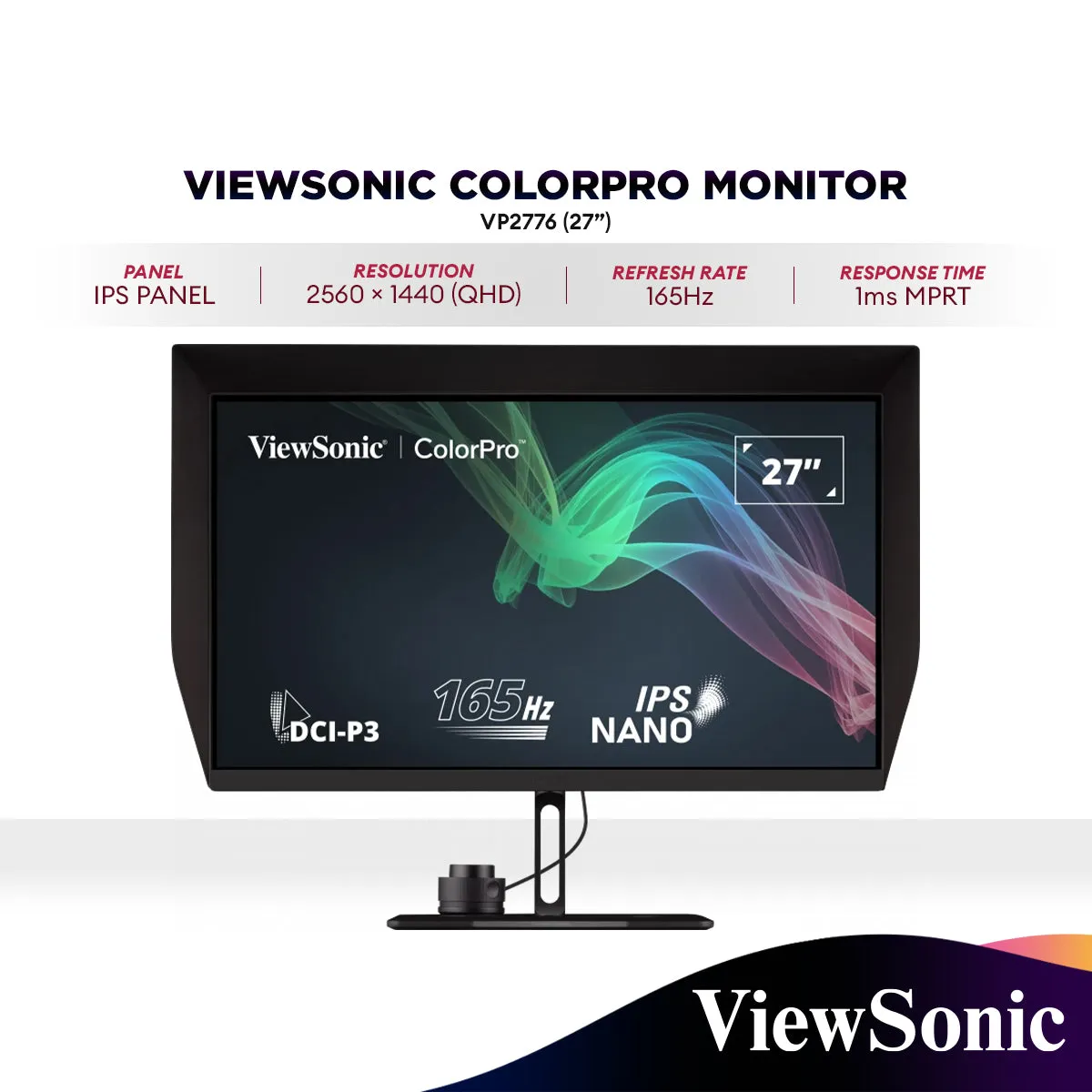

Product Details Of ViewSonic VP2776 27 Inch QHD Pantone Validated Video Editing Monitor With integrated calibrator, 165Hz & Nano IPS ( VP2776 )

SPECIFICATIONS

Display

Display Size (in.): 27

Viewable Area (in.): 27

Panel Type: IPS Technology

Resolution: 2560 x 1440

Resolution Type: QHD (Quad HD)

Static Contrast Ratio: 1,000:1 (typ)

Dynamic Contrast Ratio: 20M:1

Light Source: LED

Brightness: 400 cd/m² (typ)

Colors: 1.07B

Color Space Support: 10 bit (8 bit A-FRC)

Aspect Ratio: 16:9

Response Time (Typical GTG): 3ms

Response Time (GTG w/OD): 3ms

Viewing Angles: 178º horizontal, 178º vertical

Backlight Life (Hours): 30000 Hrs (Min)

Curvature: Flat

Refresh Rate (Hz): 165

Variable Refresh Rate Technology: Yes

Blue Light Filter: Yes

Flicker-Free: Yes

Color Gamut: Adobe RGB: 99% size / 87% coverage (Typ)

DCI-P3: 98% size / 95% coverage (Typ)

EBU: 131% size / 100% coverage (Typ)

REC709: 133% size / 100% coverage (Typ)

SMPTE-C: 144% size / 100% coverage (Typ)

NTSC: 94% size (Typ)

sRGB: 133% size / 100% coverage (Typ)

Pixel Size: 0.233 mm (H) x 0.233 mm (V)

Surface Treatment: Anti-Glare, Hard Coating (3H)

Compatibility

PC Resolution (max): 2560x1440

Mac® Resolution (max): 2560x1440

PC Operating System: Windows 10/11 certified; macOS tested

Mac® Resolution (min): 2560x1440

Connector

USB 3.1 Type C - Downstream: 1

USB 3.2 Type A Down Stream: 2

USB 3.2 Type B Up Stream: 1

USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (90W power charger)

Micro USB: 1

3.5mm Audio Out: 1

HDMI 2.0 (with HDCP 2.2): 2

DisplayPort: 1

Power in: 3-pin Socket (IEC C14 / CEE22)

Audio

Internal Speakers: 3Watts x2

Power

Eco Mode (Conserve): 33.4W

Eco Mode (optimized): 36.3W

Consumption (typical): 39.5W

Consumption (max): 43.5W

Voltage: AC 100-240V

Stand-by: 0.5W

Power Supply: Internal Power Supply

Additional Hardware

Kensington Lock Slot: 1

Cable Organization: Yes

Controls

Physical Controls: Joystick key: Up, Right, Down, Left, Center; Power

On Screen Display: Input Select, Color Mode, ViewMode, Audio Adjust, Setup Menu

Wall Mount

VESA Compatible: 100 x 100 mm

Input Signal

Frequency Horizontal: HDMI (v2.0): 20 ~ 230KHz, DisplayPort (v1.4): 30 ~ 250KHz, Type C: 30 ~ 250KHz

Frequency Vertical: HDMI (v2.0): 48 ~ 144Hz, DisplayPort (v1.4): 48 ~ 165Hz, Type C: 48 ~ 165Hz

Video Input

Digital Sync: TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.4), Micro-Packet - Type C

Ergonomics

Height Adjust (mm): 120

Swivel: 120º

Tilt (Forward/Back): -3º / 21º

Pivot (Right/Left): 90º / 90º

Weight (metric)

Net (kg): 8.4

Net Without Stand (kg): 5.1

Gross (kg): 12.8

Dimensions (metric) (wxhxd)

Packaging (mm): 692 x 505 x 225

Physical (mm): 614 x 449.36~569.36 x 234

Physical Without Stand (mm): 614 x 364 x 54
